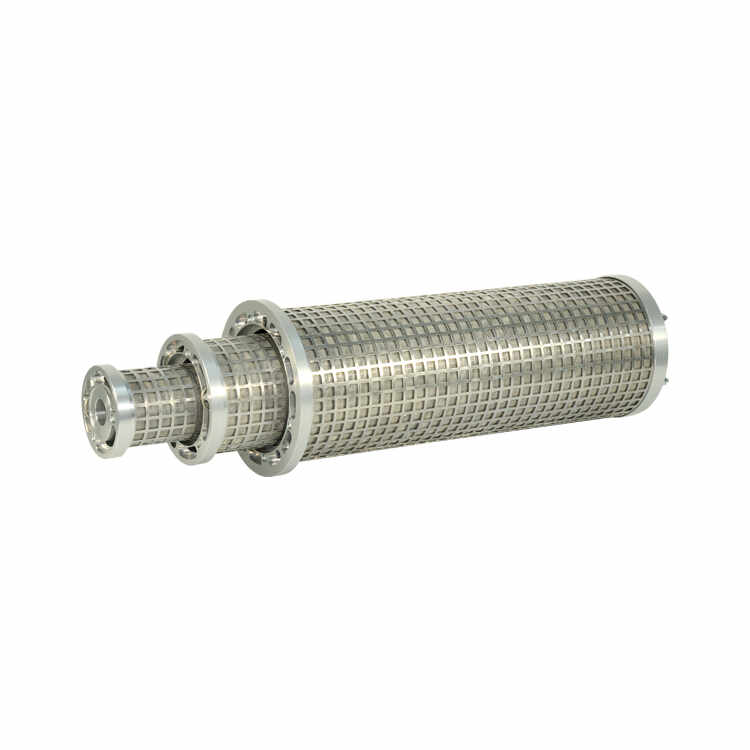

Metal Parallel Filter Element

Metal Parallel Filter Element is an industrial filter element consisting of multiple metal filter cartridges connected in parallel. It features high flow rate, low pressure drop, and is washable and regenerable. It is characterized by high flow rate and long service life and is widely used in industries such as hydraulic lubrication, petrochemicals, and power metallurgy.



Home > Products > Metal Parallel Filter Element

Introduction about

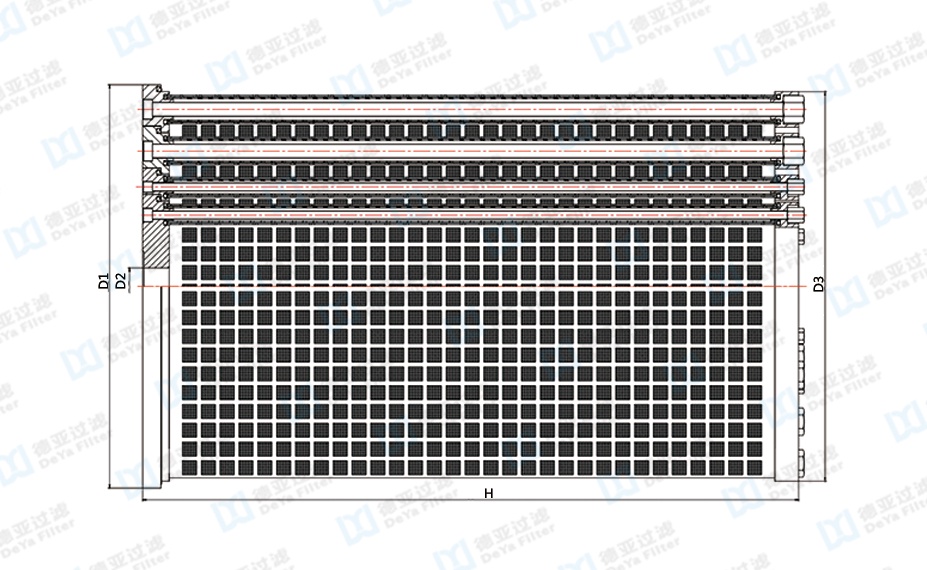

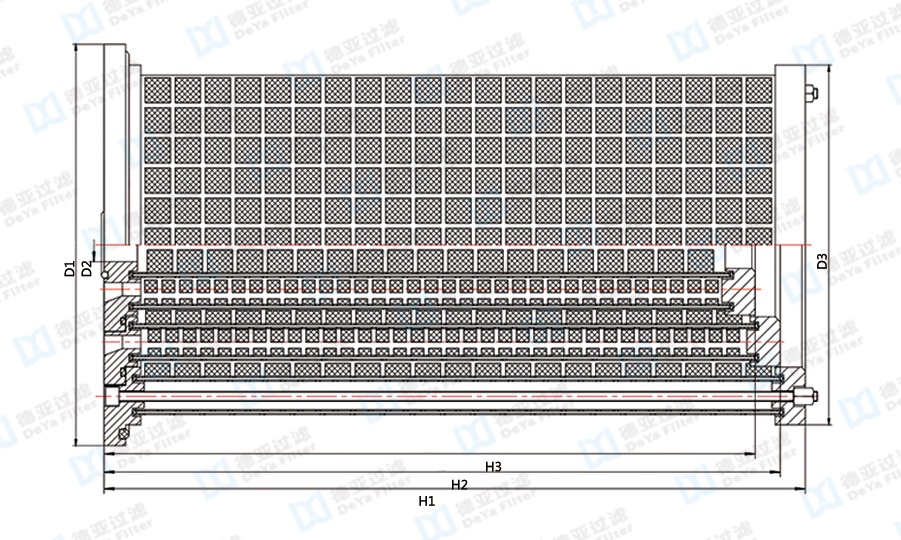

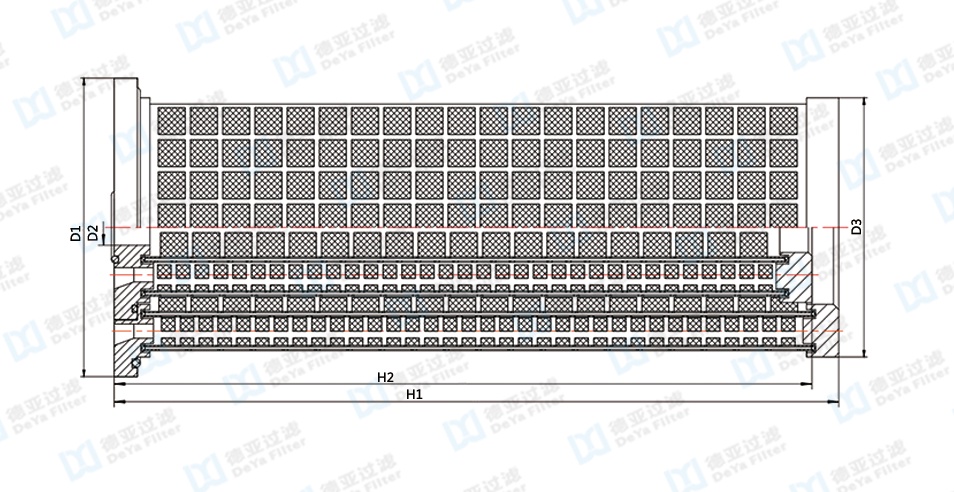

Custom Drawing

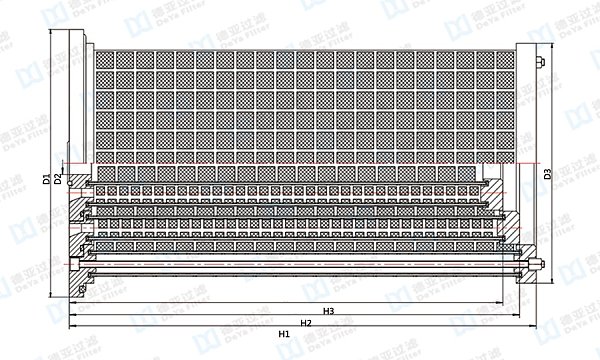

Drawing 01
Drawing 02
Drawing 03
Drawing 04

Features

Extra-large filtration area: The parallel design provides 2-5 times the filtration area of a single cartridge of the same volume, resulting in high dirt holding capacity and long service life.
Low pressure drop, high flow rate: Parallel design minimizes flow resistance, making it suitable for high-viscosity/high-flow-rate fluids (such as lubricating oil and crude oil).
Washable and regenerable: The metal mesh can be repeatedly washed (ultrasonic/high-pressure water), with a lifespan 5-10 times that of paper filter cartridges, reducing costs.
High temperature and corrosion resistance: Stainless steel is suitable for harsh operating conditions such as high temperatures (≤450℃), acids, alkalis, and organic solvents.
High reliability: Single cartridge blockage can be replaced online, ensuring continuous system operation without system shutdown.

Technical Specifications

Parameter	Standard Specification	Optional Configuration	Remarks
Product Name	Metal Parallel Filter Element	-	Industrial high-flow reusable filter component
Core Structure	3-cartridge parallel design, concentric circular arrangement	2/4/5 cartridges optional	Single cartridge failure does not affect system operation
Filter Media	304 Stainless Steel Woven Mesh	316L Stainless Steel Sintered Mesh	Sintered mesh for higher pressure and temperature resistance
Filtration Accuracy	20μm	1μm / 5μm / 10μm / 50μm / 100μm	Customizable based on system requirements
Single Cartridge Rated Flow	200L/min	10L/min ~ 1000L/min	Flow rate varies with cartridge size and accuracy
Total Rated Flow (3-cartridge)	600L/min	Up to 5000L/min (5-cartridge)	Total flow = single cartridge flow × number of cartridges
Operating Temperature Range	-20℃ ~ 120℃	Up to 450℃ (sintered mesh)	High temperature resistance depends on media and sealing material
Nominal Operating Pressure	1.0MPa	0.6MPa / 1.6MPa	Customizable for high pressure systems
Initial Pressure Drop (at rated flow)	≤0.05MPa	≤0.1MPa	Low pressure drop design for energy saving
End Cover Material	304 Stainless Steel	316L Stainless Steel	Corrosion resistance for harsh environments
Support Skeleton	Perforated 304 Stainless Steel Tube	Perforated 316L Stainless Steel Tube	Enhances structural stability under high pressure
Sealing Material	NBR (Nitrile Rubber)	Viton / PTFE	Chemical resistance for special fluid media
Service Life	5~10 times of disposable paper filter elements	-	Cleanable and reusable, reduces long-term cost
Cleaning Method	High pressure water flushing	Ultrasonic cleaning / chemical soaking	Can be cleaned 3~5 times before replacement
Typical Applications	Hydraulic lubrication systems, power generation, metallurgy	Petrochemical, machinery manufacturing, water treatment, food & beverage, pharmaceutical	Suitable for high-flow, high-reliability industrial filtration scenarios

Typical application

Metallurgy/Steel Plants: Lubricating oil filtration for thin oil stations and hydraulic stations (e.g., LY24/25W-30).
Power/Thermal Power: Lubricating/control oil filtration for steam turbines and generators.
Petrochemicals: Filtration of crude oil, fuel oil, hydraulic oil, and catalysts.
Machinery Manufacturing: Lubricating oil filtration for large machine tools, hydraulic systems, and gearboxes.
Others: Wastewater treatment, food and beverage (edible oil/syrup), pharmaceuticals (liquid/solvent).
