Industrial Gas Filtration

Industrial dust gas filtration removes harmful impurities and pollutants generated during production processes.

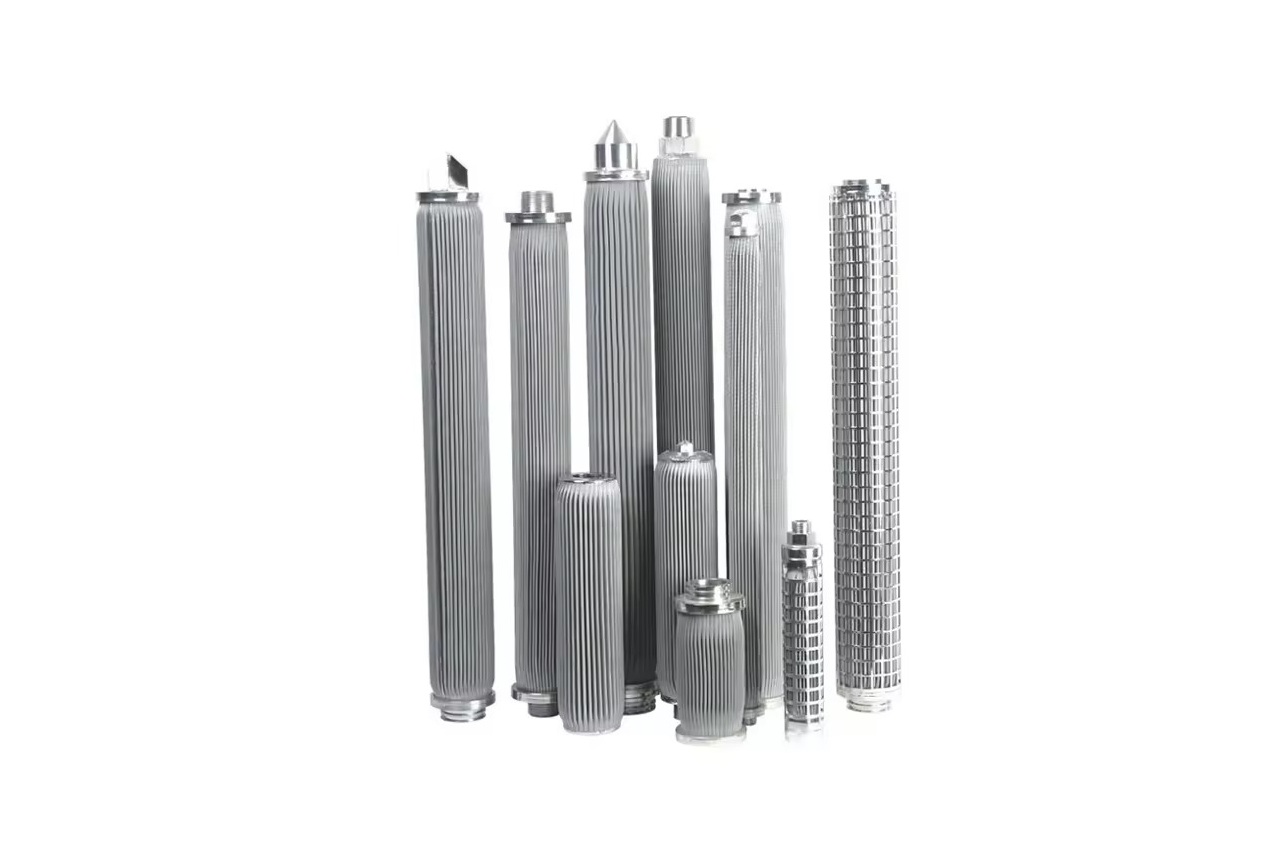

Our filter element made of metal wire mesh, utilizes laminated metal wire mesh technology to combine a low-strength, high-efficiency filter layer with a high-strength, coarse-pore support layer. This achieves a comprehensive balance between filter element strength, filtration accuracy, and gas barrier performance. The filter element boasts advantages such as high filtration efficiency, high temperature resistance, and corrosion resistance, and is widely used in coal gasification, petroleum catalytic cracking, biomass gasification, waste incineration, pyrolysis, and metallurgy.



Home > Products > Industrial Gas Filtration

Introduction about

Industrial dust gas filtration removes harmful impurities and pollutants generated during production processes.

Our filter element made of metal wire mesh, utilizes laminated metal wire mesh technology to combine a low-strength, high-efficiency filter layer with a high-strength, coarse-pore support layer. This achieves a comprehensive balance between filter element strength, filtration accuracy, and gas barrier performance. The filter element boasts advantages such as high filtration efficiency, high temperature resistance, and corrosion resistance, and is widely used in coal gasification, petroleum catalytic cracking, biomass gasification, waste incineration, pyrolysis, and metallurgy.

Custom Drawing

Dawing 01
Drawing 02
Dawing 03
Drawing 04

Features

High temperature & low temperature resistance, adaptable to diverse working conditions.
Outstanding anti-corrosion performance against chemical gases.
High rigidity, pressure-resistant and not easy to deform.
Reusable after cleaning, lower long-term operation cost.
Stable filtration accuracy, reliable impurity removal effect.
Low flow resistance, large gas handling capacity.
Sanitary material, no secondary contamination.

Technical Specifications

Item	Technical Specification
Material	304 / 316L Stainless Steel Multi-layer Sintered Mesh
Filtration Precision	1μm ~ 150μm (Customized)
Max Operating Temperature	≤320℃
Max Working Pressure	2.5 MPa
Max Differential Pressure	1.2 MPa
Structure	Integral sintered, multi-layer laminated, high strength & stable pore structure
Outer Diameter	20mm / 30mm / 40mm / 50mm / 60mm (Customized)
Cartridge Length	100mm – 1000mm (Customized)
Connection Type	Thread / Insert / Flange / Custom interface
Cleaning Method	Ultrasonic cleaning / Back flush / Chemical cleaning, reusable
Feature	High temperature resistance, corrosion resistance, pressure resistance, low flow resistance, stable filtration efficiency, no secondary pollution
Application	Industrial gas purification, compressed air filtration, polyester melt spinning, polymer extrusion, chemical & petrochemical industry
