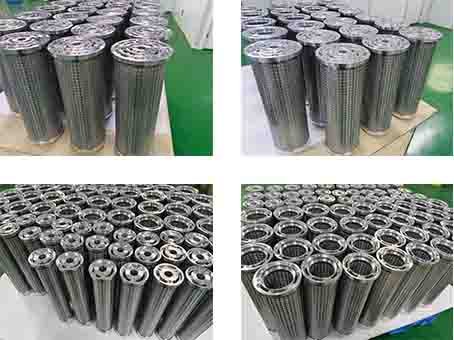

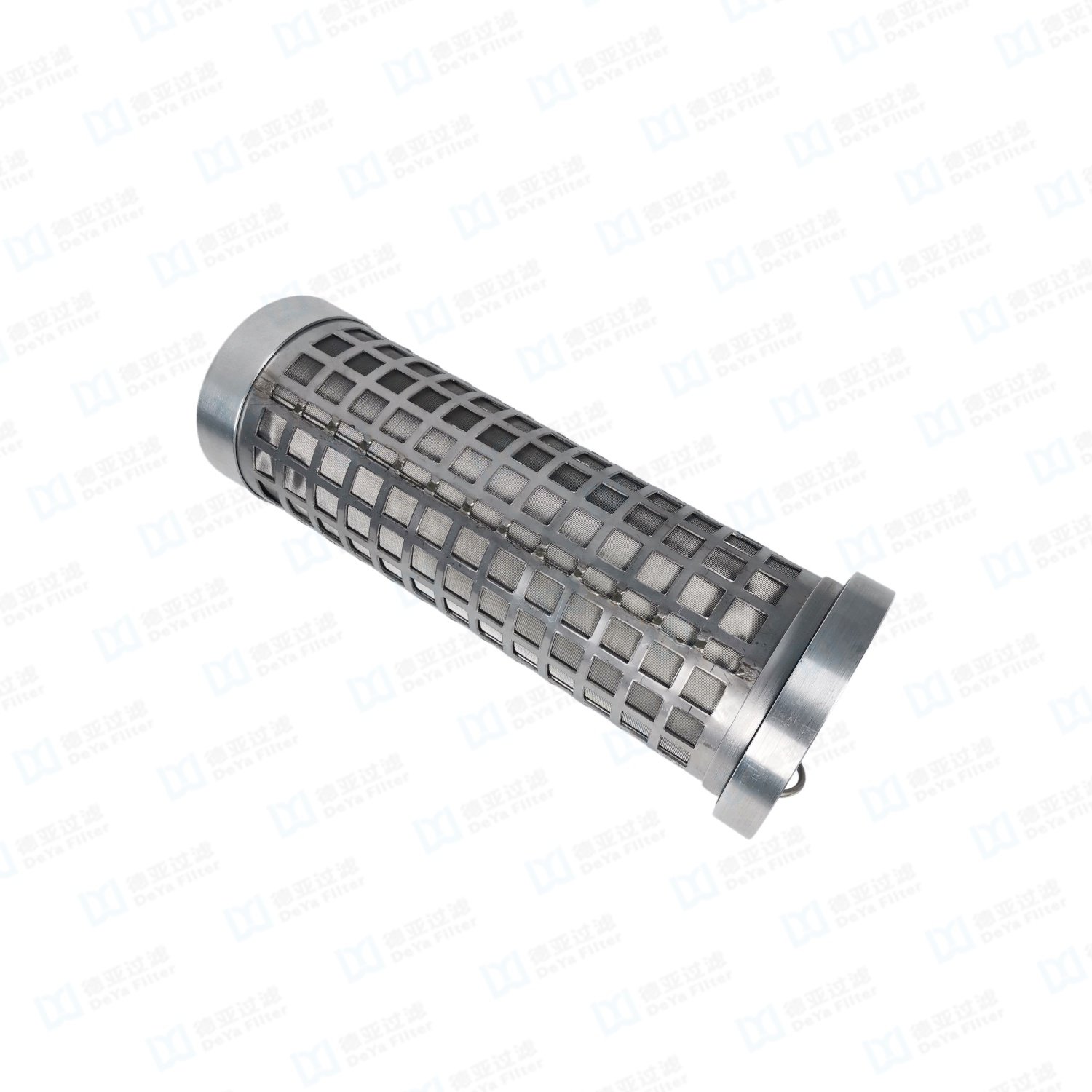

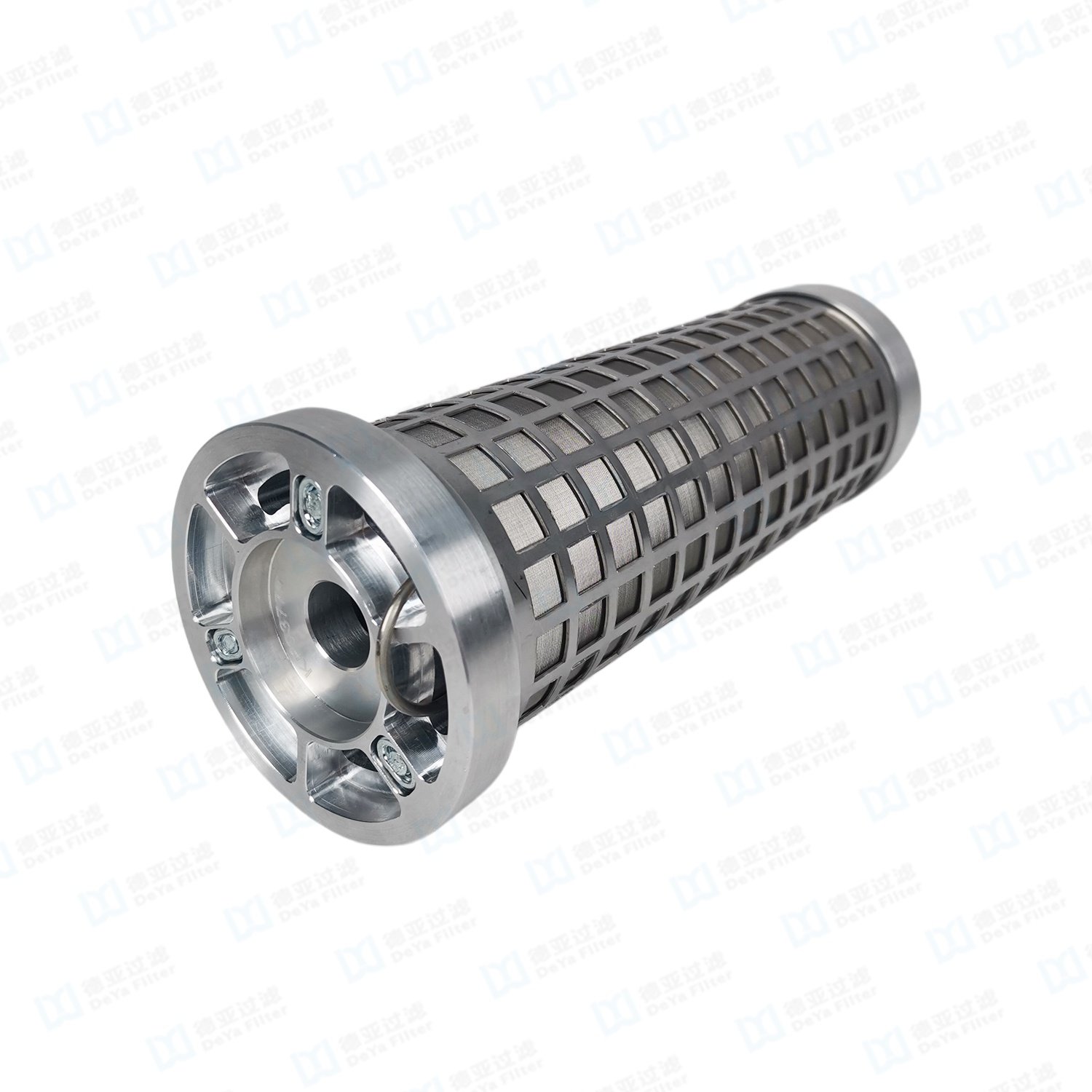

Metal Multimantle Parallel Filter Element

The filter element consists of multiple metal filter cylinders of varying sizes nested concentrically, forming a parallel-flow structure; the nested layers distribute the flow simultaneously, significantly increasing the effective filtration area while minimizing flow resistance and enhancing contaminant-holding capacity.
It is commonly used in steam turbine lubrication oil stations and fuel supply systems, corresponding to the parallel-triple-element structure for steam turbine oil that you mentioned earlier.
  • Metal Multimantle Parallel Filter Element
  • Metal Multimantle Parallel Filter Element
  • Metal Multimantle Parallel Filter Element
  • Metal Multimantle Parallel Filter Element

Product Overview:

The filter element consists of multiple metal filter cylinders of varying sizes nested concentrically, forming a parallel-flow structure; the nested layers distribute the flow simultaneously, significantly increasing the effective filtration area while minimizing flow resistance and enhancing contaminant-holding capacity.

It is commonly used in steam turbine lubrication oil stations and fuel supply systems, corresponding to the parallel-triple-element structure for steam turbine oil that you mentioned earlier.


Core Technical Parameters:

Base Material

304/316L stainless steel (standard); Titanium/Hastelloy (for strong corrosion resistance requirements); Aluminum (end cup material)

Filtration Precision

Customizable from 10μm to 2000μm, with 10μm-100μm as the standard industrial grade

Max Working Pressure

30MPa (300bar), adaptable to high-pressure industrial operating environments

Temperature Adaptability

Standard grade: -250℃ ~ 600℃; High-temperature grade: up to 900℃

Structural Configuration

2-5 parallel cylindrical filter mantles, integral forming, bolted connection for easy disassembly

Applicable Media

Hydraulic oil, lubricating oil, fuel oil, industrial raw water, sewage, industrial gas, etc.

Filtration Efficiency

≥99.99% for particles meeting the rated precision standard

Standard Model

SLQ05*25 SLQ04*25 SLQ1.3*25 SLQ0.5X25 SLQ05X25

LY15/25   LY38/45  LY48/25   LY-15、LY-24、LY-38、LY-48、LY-75、LY-100

park*er 935191Q,G02017,17438618


Key Advantage:

Integrated unit formed by parallel, multi-layer concentric metal sleeves

High flow capacity and low pressure drop; suitable for high-flow oil filtration

All-stainless steel construction; resistant to oil, high temperatures, and corrosion

Cleanable and reusable filter mesh, reducing replacement costs


Application Fields:

It is widely used in key industrial fields such as petrochemicals, thermal power generation, metallurgy, shipbuilding, papermaking, textile printing and dyeing, food, and pharmaceuticals. It is mainly used for the precision filtration of hydraulic oil, lubricating oil, and fuel oil; the purification of industrial water; and the removal of impurities from industrial gases, effectively protecting critical equipment such as pumps, valves, and turbines from wear and clogging.
