Metal Triple Parallel Filter Element

The Metal Parallel Filter Element is an industrial filtration component featuring an assembly of multiple metal filter cartridges arranged in parallel to achieve high flow rates and low pressure drops. Designed for high throughput and long service life, it is widely used in sectors such as hydraulic lubrication, petrochemicals, power generation, and metallurgy.

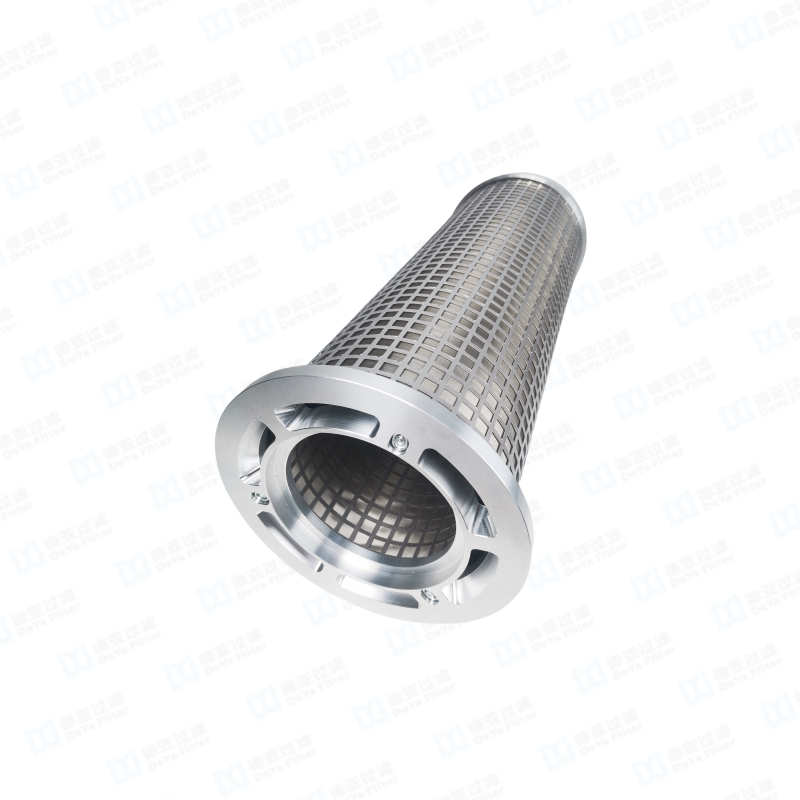

  • Metal Triple Parallel Filter Element

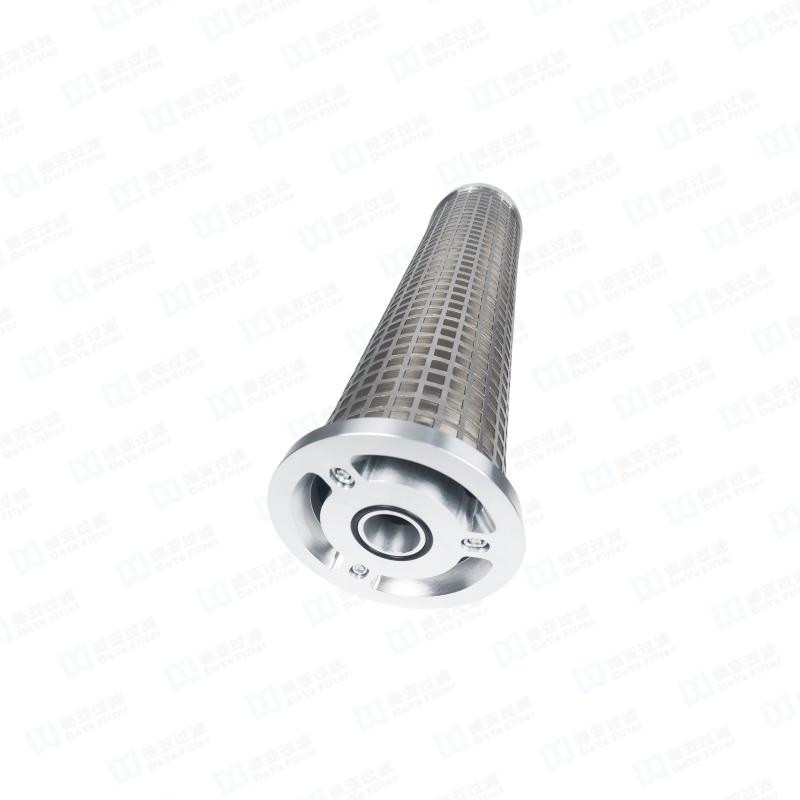

  • Metal Triple Parallel Filter Element

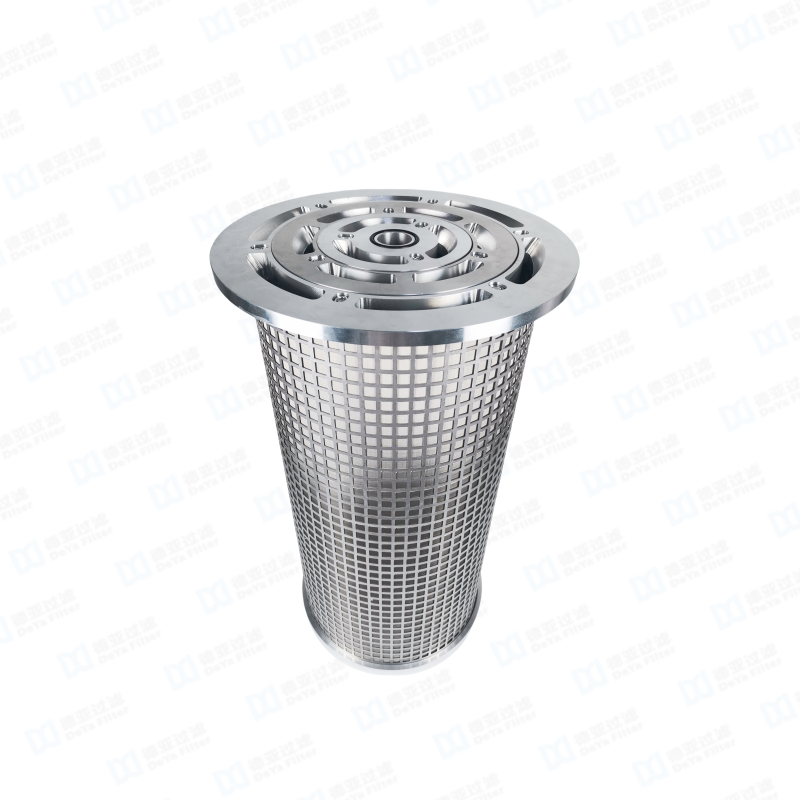

  • Metal Triple Parallel Filter Element

Product Overview:

The Metal Parallel Filter Element is an industrial filtration component featuring an assembly of multiple metal filter cartridges arranged in parallel to achieve high flow rates and low pressure drops. Designed for high throughput and long service life, it is widely used in sectors such as hydraulic lubrication, petrochemicals, power generation, and metallurgy.


Core Technical Parameters:

Parameter

Standard Range

Filtration Accuracy

1μm ~ 100μm

Material

304 / 316L Stainless Steel Mesh

Working Pressure

≤ 0.6 ~ 1.0 MPa

Working Temperature

-10°C ~ 120°C

Common Models

LY15/25, LY38/25, LY24/25W-30 SLFX Series


Features:

Extra-large filtration area: The parallel design offers 2–5 times the surface area of a single-cylinder filter of the same volume, resulting in high dirt-holding capacity and extended service life.

Low pressure drop, high flow rate: Parallel flow paths minimize resistance, making the system suitable for high-viscosity or high-flow fluids (e.g., lubricating oil, crude oil).

Cleanable and reusable: Metal mesh elements can be cleaned repeatedly (via ultrasonic or high-pressure water methods); they last 5–10 times longer than paper filter elements, reducing costs.

High-temperature and corrosion resistance: Stainless steel construction withstands harsh operating conditions, including high temperatures (up to 450°C), acids/alkalis, and organic solvents.



Typical Applications:

Metallurgy / Steel Plants: Filtration of lubricating oil for thin-oil stations and hydraulic stations (e.g., LY24/25W-30).

Power Generation / Thermal Power: Filtration of lubrication and control oils for steam turbines and generators.

Petrochemicals: Filtration of crude oil, fuel oil, hydraulic oil, and catalysts.

Machinery Manufacturing: Filtration of lubricating oil for large machine tools, hydraulic systems, and gearboxes.

Others: Wastewater treatment, food and beverage (edible oils / syrups), and pharmaceuticals (liquid medications / solvents).
