Stainless Steel Filter Element
Introduction about
Industrial dust gas filtration removes harmful impurities and pollutants generated during production processes.
Our filter element made of metal wire mesh, utilizes laminated metal wire mesh technology to combine a low-strength, high-efficiency filter layer with a high-strength, coarse-pore support layer. This achieves a comprehensive balance between filter element strength, filtration accuracy, and gas barrier performance. The filter element boasts advantages such as high filtration efficiency, high temperature resistance, and corrosion resistance, and is widely used in coal gasification, petroleum catalytic cracking, biomass gasification, waste incineration, pyrolysis, and metallurgy.
Custom Drawing

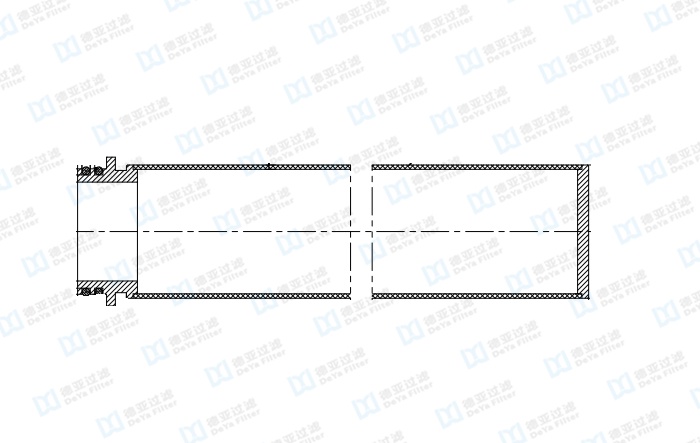

![Dawing 01]( "Dawing 01")

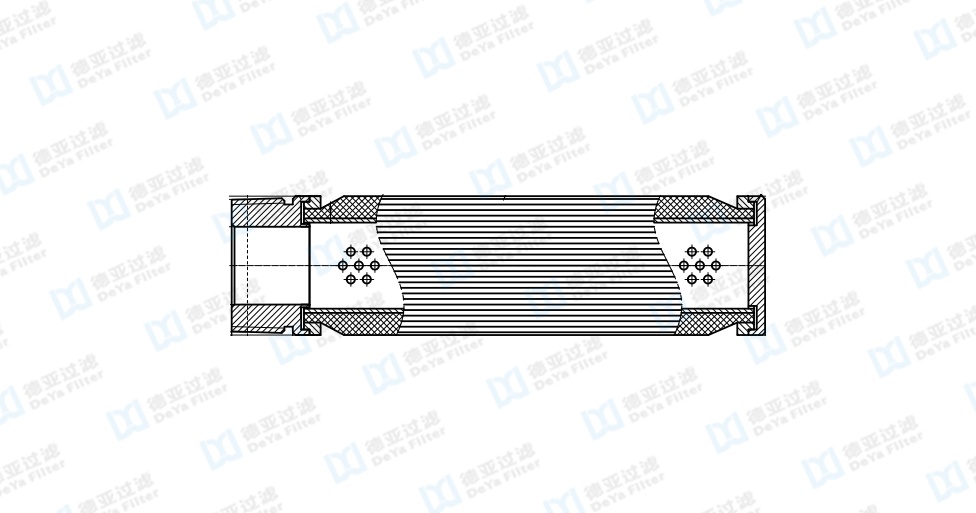

Dawing 01![Drawing 02]( "Drawing 02")

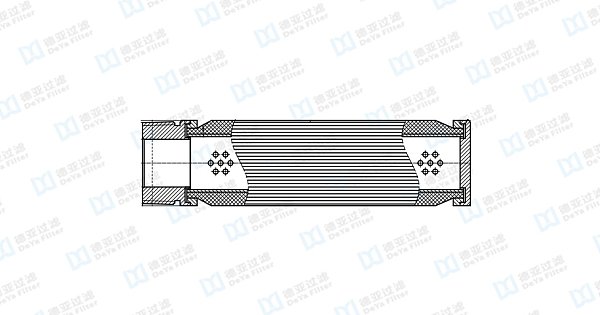

Drawing 02![Dawing 03]( "Dawing 03")

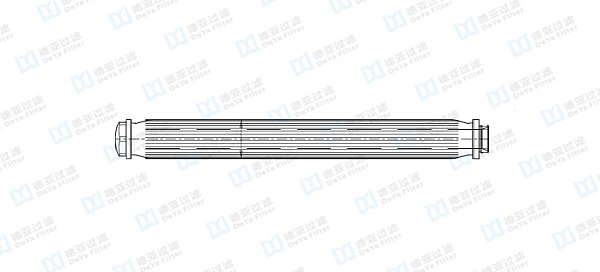

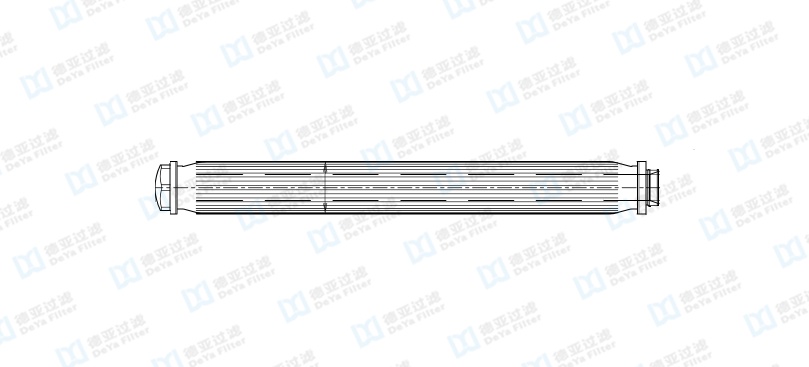

Dawing 03![Drawing 04]( "Drawing 04")

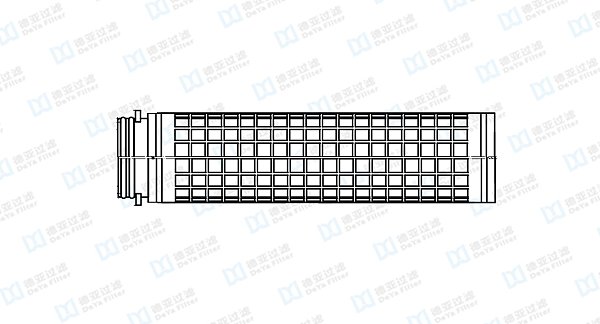

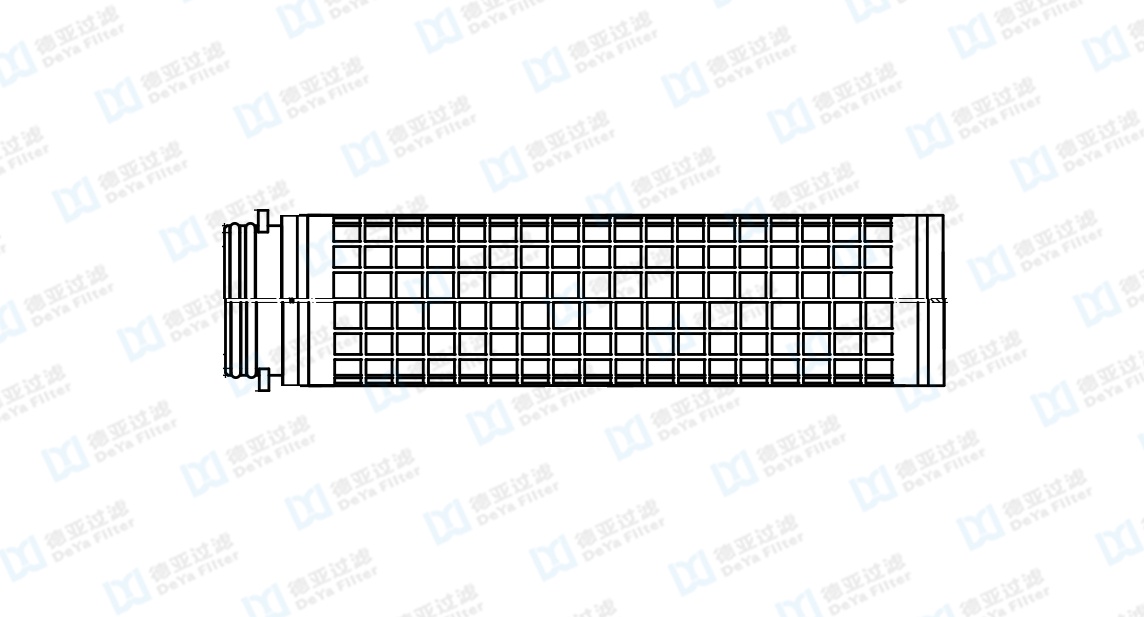

Drawing 04
Features
- Made of high-quality 304/316L stainless steel material, anti-rust and anti-corrosion, suitable for harsh industrial working environments.
- High mechanical strength, resistant to high pressure and high temperature, not easy to deform or damage during filtration.
- Precise filtration accuracy, stable pore structure, effectively intercepts solid particles and impurities.
- Cleanable and reusable, greatly reduces replacement cost and operating cost.
- Good air permeability and fast filtering speed, low flow resistance.
- Acid and alkali resistance, oxidation resistance, long service life.

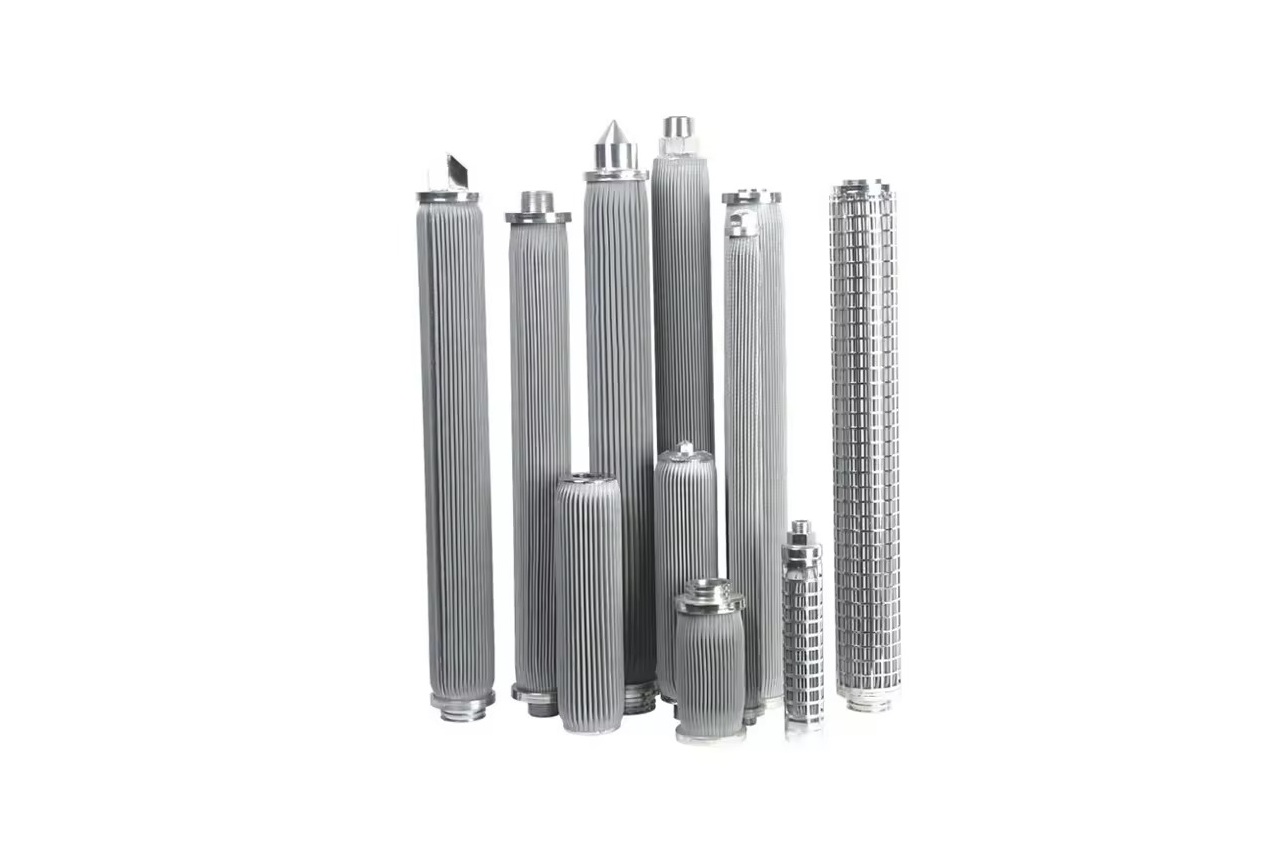

- Multiple structure types available: sintered, pleated, wire mesh and basket type.
- Custom size, interface and filtration precision are supported to meet diverse industrial filtration needs.
Why Choose Stainless Steel Filter Cartridge
Longer Service Life
Compared with PP filter cartridges, stainless steel cartridges can be cleaned and reused repeatedly, reducing replacement costs.
Excellent Temperature Resistance
Suitable for high-temperature water filtration applications.
Superior Corrosion Resistance
316L stainless steel provides excellent resistance in demanding industrial environments.
High Mechanical Strength
Suitable for high pressure and harsh operating conditions.
Technical Specifications
Item | Specification |
Material | 304 / 316L Stainless Steel |
Filter Rating | 0.5μm ~ 200μm |
Working Temperature | ≤ 200°C |
Maximum Working Pressure | 1.6 MPa |
Differential Pressure | Max 0.8 MPa |
End Cap Material | Stainless Steel / PP |
Connection Type | Thread / Quick Connect / Flange / DOE / SOE |
Outer Diameter | 25mm / 30mm / 40mm / 50mm / 60mm |
Length | 5" / 10" / 20" / 30" / 40" / Customized |
Comparison
| Feature | Stainless Steel Filter Cartridge | PP Filter Cartridge |
| Material | SUS304/SUS316L | Polypropylene |
| Reusable | Yes | No |
| Service Life | Years | Months |
| Temperature Resistance | High | Limited |
| Chemical Resistance | Excellent | Limited |
| Cleaning Method | Backwash / Ultrasonic | Replace |
Frequently Asked Questions
Q1: How long does a stainless steel filter cartridge last?
A:A stainless steel filter cartridge can be cleaned and reused many times, providing a much longer service life than disposable filter cartridges.
Q2: What is the difference between 304 and 316L stainless steel filter cartridges?
A:316L provides better corrosion resistance and is recommended for seawater, chemical and pharmaceutical applications.
Q3: Can you manufacture customized stainless steel filter cartridges?
A:Yes, we provide OEM sizes, micron ratings and connection designs.
Typical application
- Exhaust gas cleaning.
- Gas filtration in biogas plants.
- Process gas filtration.
- Protection of heat exchangers, catalysts, and turbines.
- Hot gas filtration in dust removal for synthesis and combustion processes.
