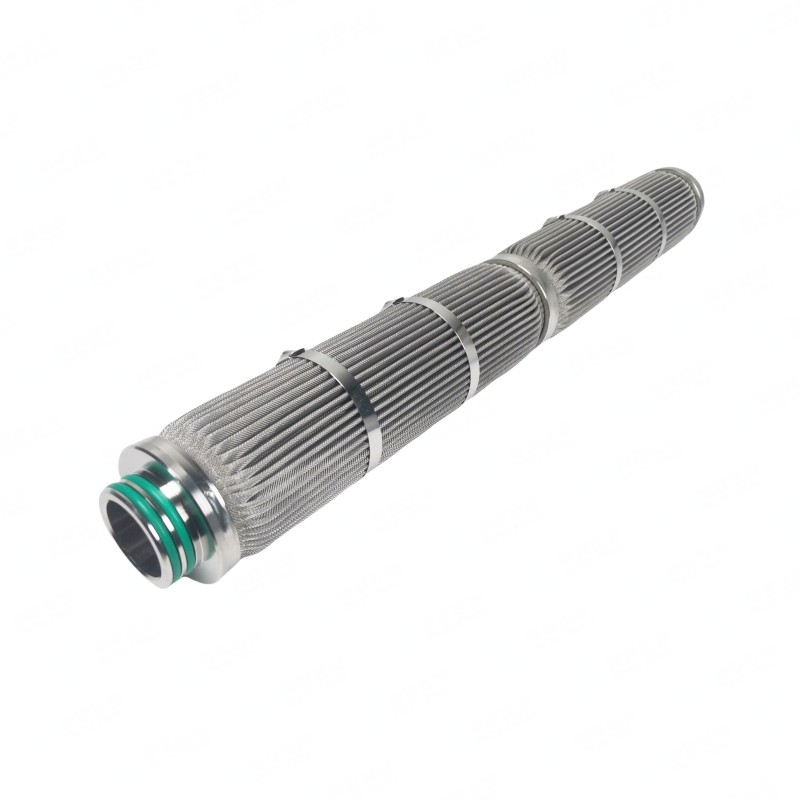

Chemical Fiber Filtration
They are designed to capture and separate particulate matter or contaminants from fluids or airflows in a variety of industrial applications. These filters remove solid impurities such as dust and silicates, agglomerated additives such as catalysts, inhibitors, and stabilizers, as well as aggregated contaminants generated during nylon and polyester production. Providing candle filters, leaf filters, and extruder screens for polymer filtration and purification to the rubber and plastics industry, highly efficient and reliable filtration reduces maintenance downtime, lowers waste and impurity content in finished products, and ensures stable yields and high quality of final products.
Introduction about
Polymer filters are specialized filtration components made from high-quality polymer materials. They are designed to capture and separate particulate matter or contaminants from fluids or airflows in a variety of industrial applications. These filters remove solid impurities such as dust and silicates, agglomerated additives such as catalysts, inhibitors, and stabilizers, as well as aggregated contaminants generated during nylon and polyester production. Providing candle filters, leaf filters, and extruder screens for polymer filtration and purification to the rubber and plastics industry, highly efficient and reliable filtration reduces maintenance downtime, lowers waste and impurity content in finished products, and ensures stable yields and high quality of final products.
Custom Drawing
![Dawing 01]( "Dawing 01")
Dawing 01![Drawing 02]( "Drawing 02")

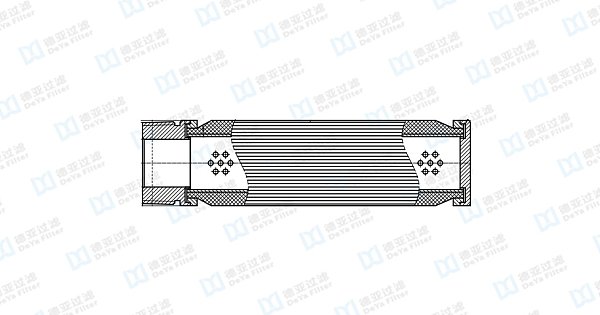

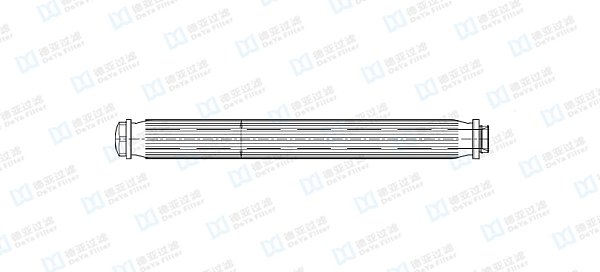

Drawing 02![Dawing 03]( "Dawing 03")
Dawing 03![Drawing 04]( "Drawing 04")

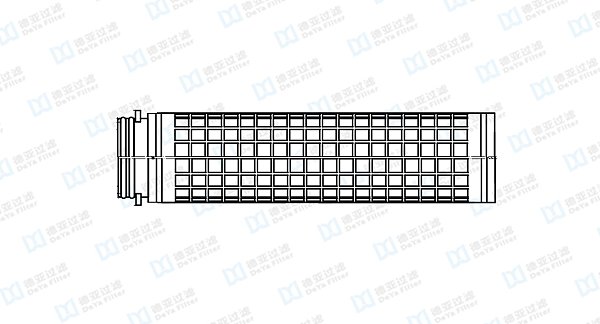

Drawing 04
Features
High temperature resistance, stable performance under high-temperature working conditions of polyester melt.
High mechanical strength, resistant to compression and deformation, suitable for long-term melt filtration.
Uniform pore size distribution, stable filtration accuracy, and excellent impurity retention.
Good backwashing and regeneration performance; can be reused after professional cleaning.
Excellent chemical corrosion resistance; does not react with polyester melt, causing no pollution.
Strong dirt-holding capacity, long service life, reducing replacement frequency.
Technical Specifications
Item | Specification |
Main Material | 304 / 316L Stainless Steel Sintered Mesh / Multilayer Woven Mesh |
Filtration Rating | 1μm ~ 150μm |
Operating Temperature | Up to 320°C |
Max Working Pressure | 2.5 MPa |
Max Differential Pressure | 1.2 MPa |
Structural Type | Multi-layer laminated / Sintered integral structure |
Outer Diameter | 20mm, 30mm, 40mm, 50mm, 60mm, Custom |
Effective Length | 100mm ~ 1000mm, Customized |
Connection Mode | Thread, Flange, Insert type, Custom interface |
Support Structure | Stainless steel inner/outer support frame |
Typical application

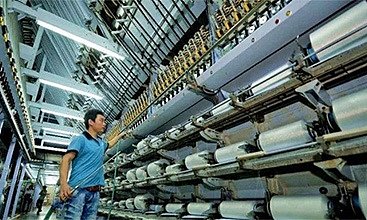

- Polyester fiber & filament production line.
- Polyester resin melt filtration.
- Plastic extrusion & granulation industry.

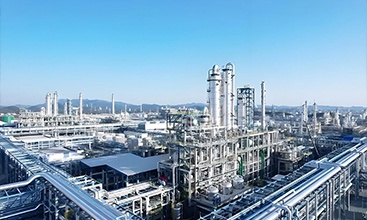

- Chemical polymer melt purification.
- Spinning, film and sheet production process.
