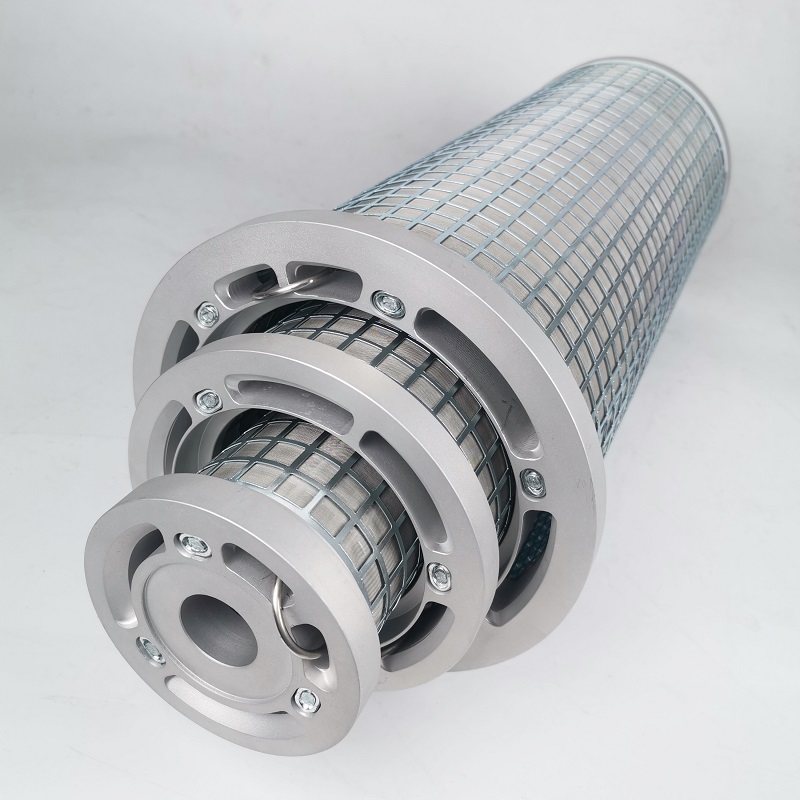

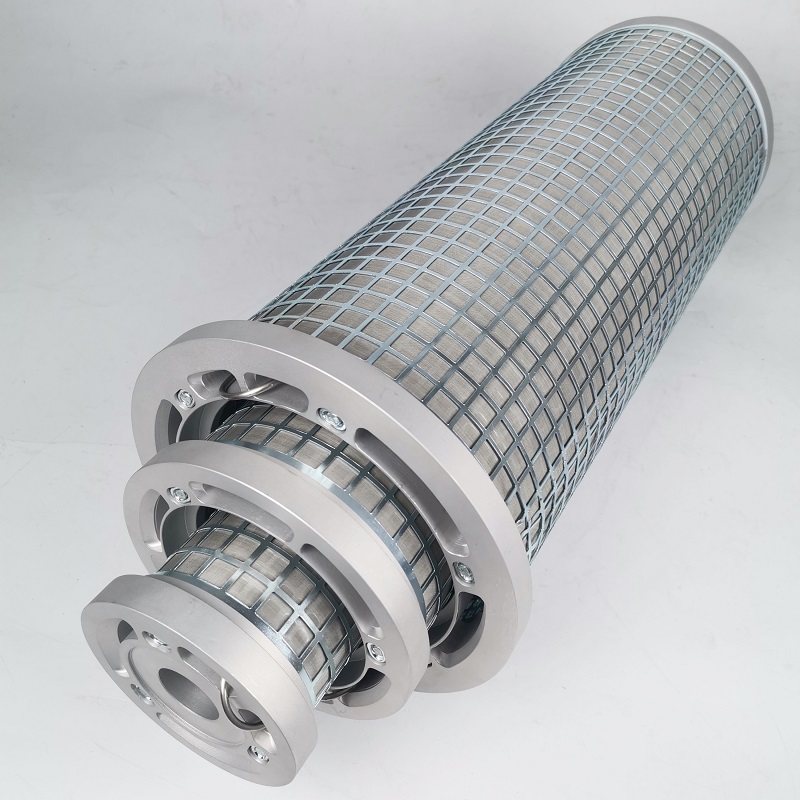

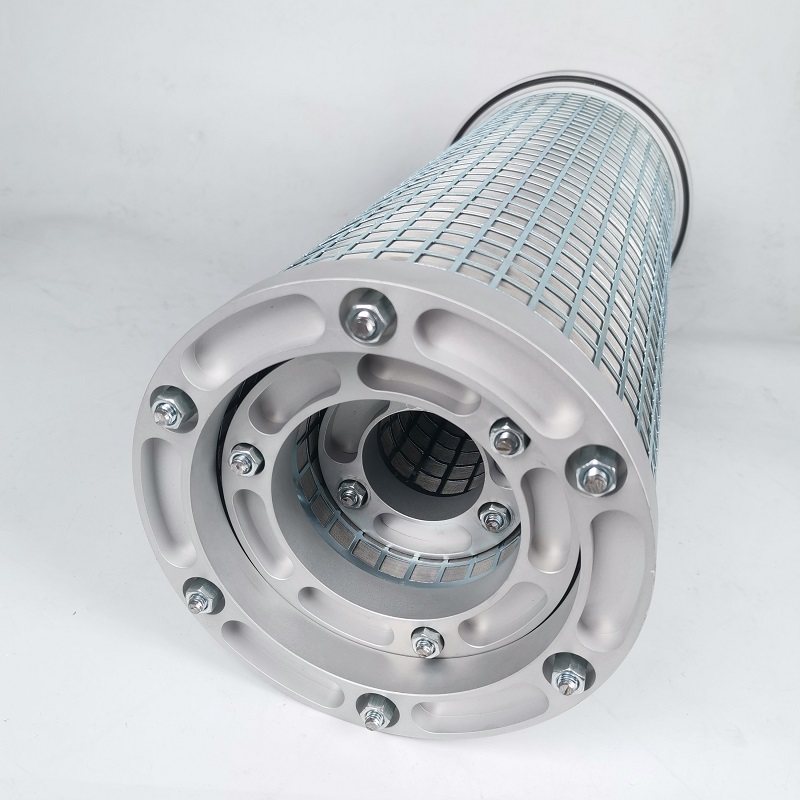

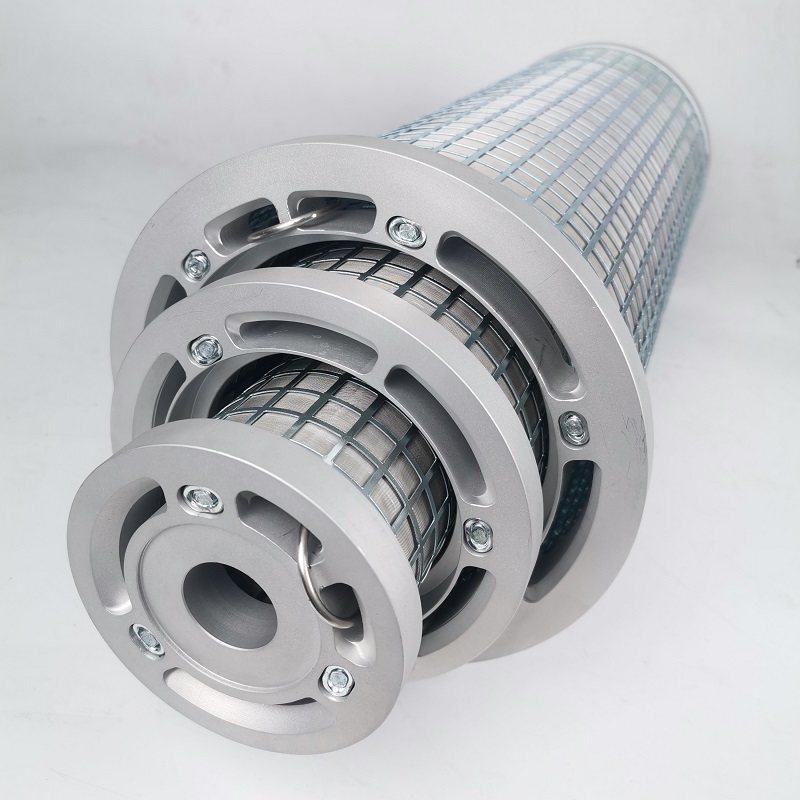

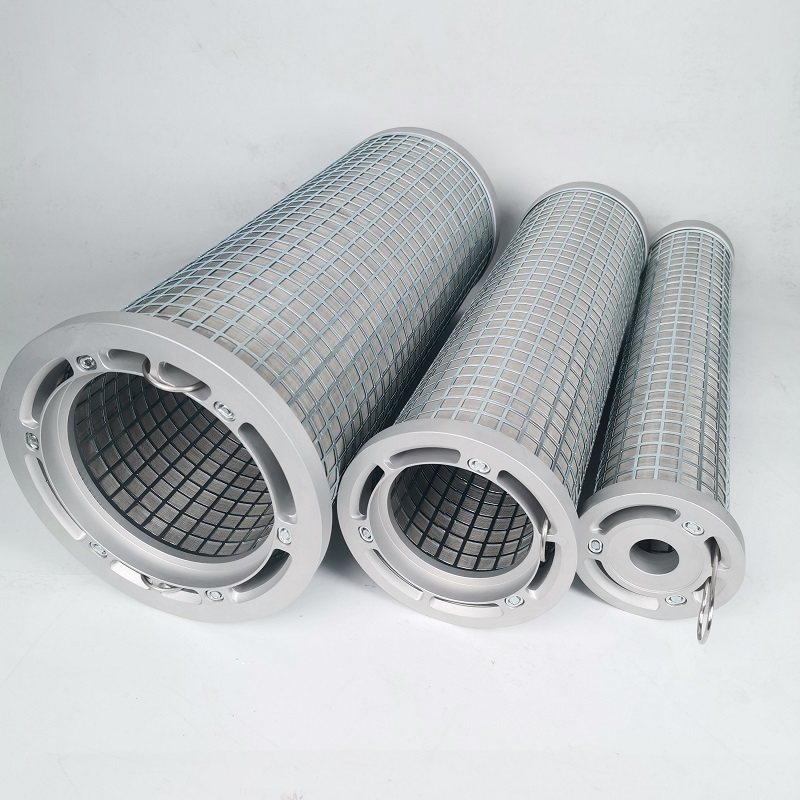

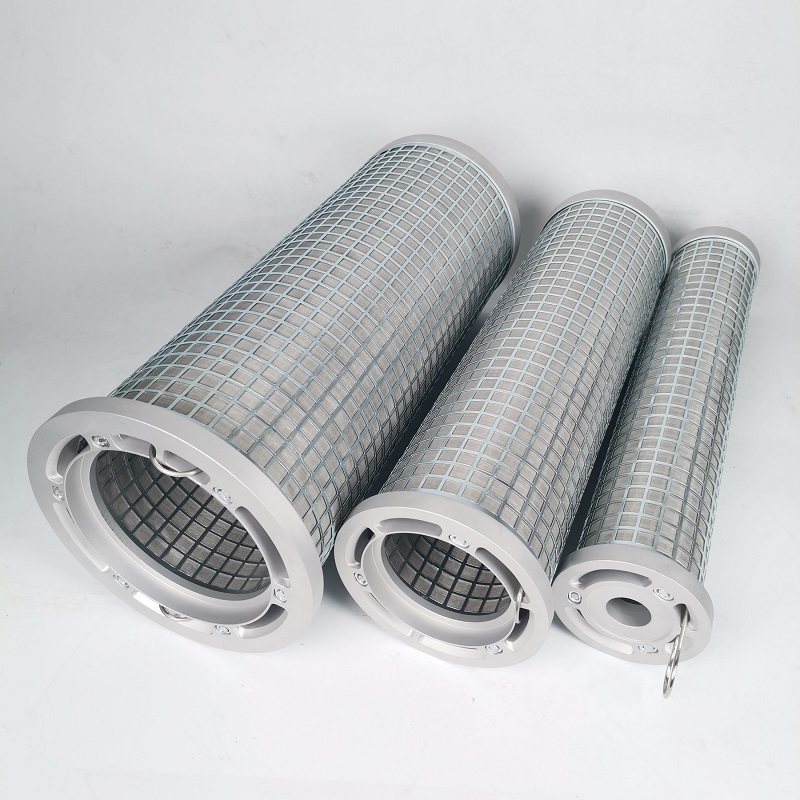

Multimantle Parallel filter element

Multimantle Parallel Filter Element is a high-performance, reusable industrial filtration component, specifically designed for high-flow, small-space filtration systems. Made of premium 304/316L stainless steel (titanium, Hastelloy optional for special corrosive conditions), it is composed of multiple cylindrical filter mantles connected in parallel, forming a multi-layer integrated structure via professional processing technology. This unique multimantle parallel design maximizes the filtration area while saving installation space, efficiently filtering impurities, metal particles and contaminants in industrial fluids (oil, water, etc.), ensuring fluid cleanliness, protecting downstream equipment and maintaining stable operation of the entire filtration system.
  • Multimantle Parallel filter element
  • Multimantle Parallel filter element
  • Multimantle Parallel filter element
  • Multimantle Parallel filter element
  • Multimantle Parallel filter element
  • Multimantle Parallel filter element

Product Overview:

Multimantle Parallel Filter Element is a high-performance, reusable industrial filtration component, specifically designed for high-flow, small-space filtration systems. Made of premium 304/316L stainless steel (titanium, Hastelloy optional for special corrosive conditions), it is composed of multiple cylindrical filter mantles connected in parallel, forming a multi-layer integrated structure via professional processing technology. This unique multimantle parallel design maximizes the filtration area while saving installation space, efficiently filtering impurities, metal particles and contaminants in industrial fluids (oil, water, etc.), ensuring fluid cleanliness, protecting downstream equipment and maintaining stable operation of the entire filtration system.


Core Technical Parameters:

Base Material

304/316L Stainless Steel (standard); Titanium/Hastelloy (corrosion-resistant option); Aluminum (end cup optional)

Filtration Precision

10μm - 2000μm (customizable per filtration requirements, 10μm - 100μm for common industrial use)

Max Working Pressure

Up to 30MPa (300bar), suitable for multimantle parallel filtration working conditions

Operating Temperature

-250℃ ~ 600℃ (standard); Up to 900℃ (high-temperature grade)

Structure

2-5 cylindrical filter mantles connected in parallel, integral structure, bolted connection for easy assembly

Applicable Media

Hydraulic oil, lubricating oil, fuel oil, raw water, sewage, industrial gas, etc.

Filtration Efficiency

Up to 99.99% for particles above the rated precision


Application Fields:

Widely used in petrochemical, power generation, metallurgical, marine, papermaking, textile, food & pharmaceutical and environmental protection industries, suitable for hydraulic lubrication systems, gas turbines, steam turbines, marine engines and pipeline filtration systems, mainly used for oil purification and water clarification filtration, intercepting impurities to protect downstream pumps, valves and precision equipment.
