Pharmaceutical Filtration

Pharmaceutical melt filter elements are key components used in the pharmaceutical manufacturing and polymer processing industries to remove micro-contaminants. They feature highly efficient depth filtration capabilities and are suitable for liquids, gases, or polymer melts, and are typically made of stainless steel.



Home > Products > Pharmaceutical Filtration

Introduction about

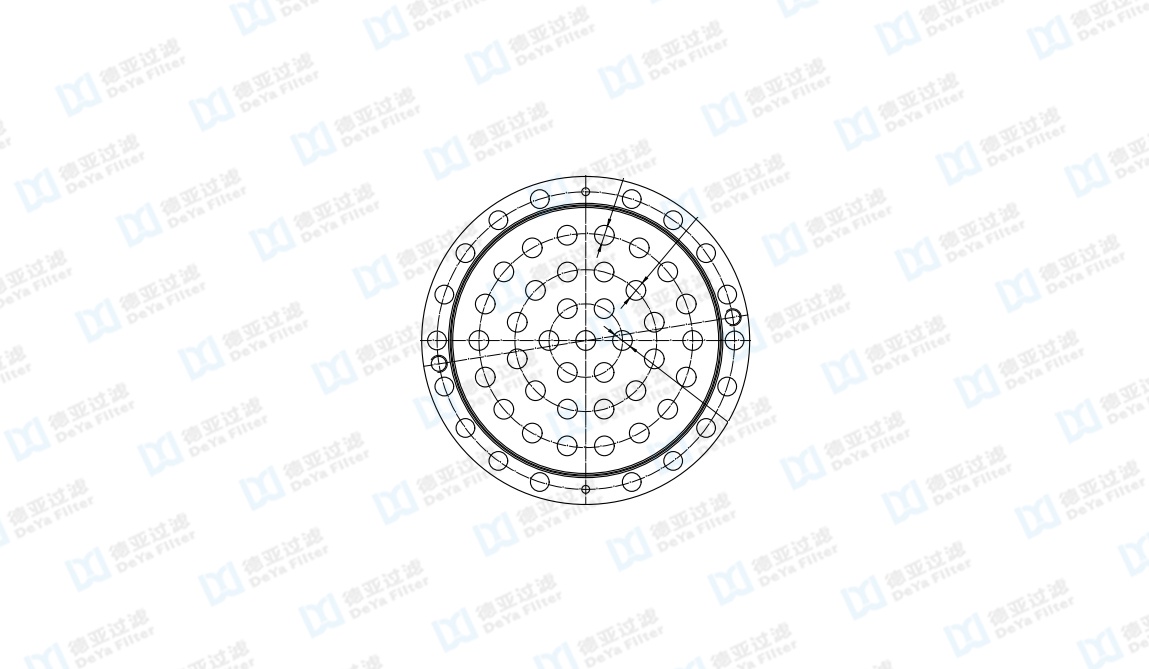

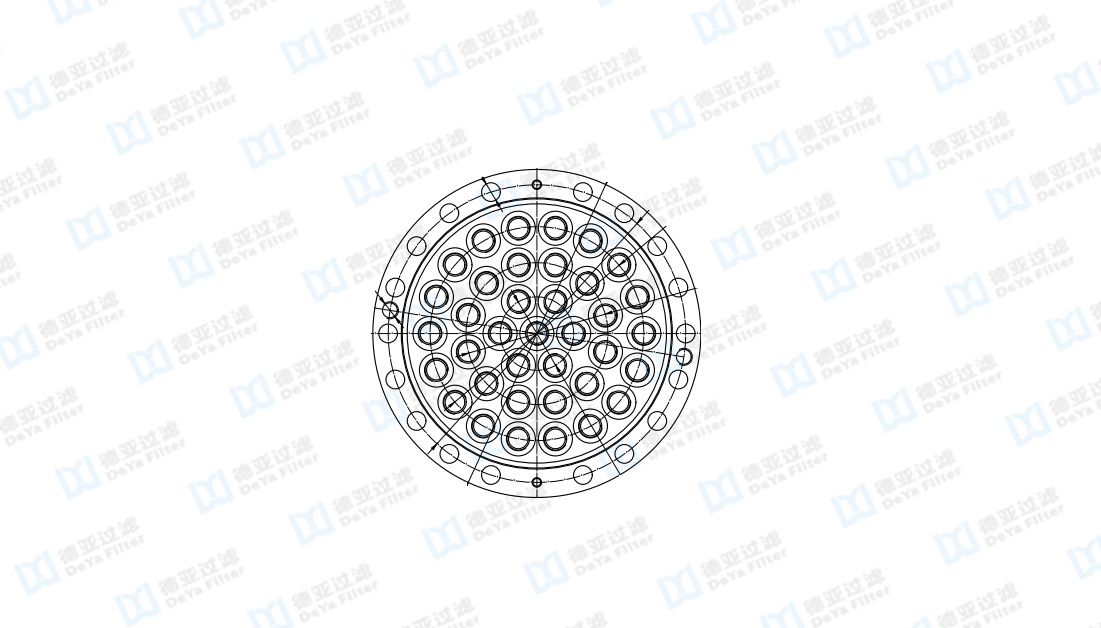

Custom Drawing

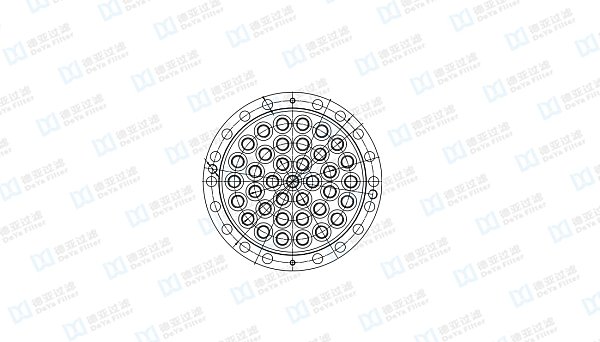

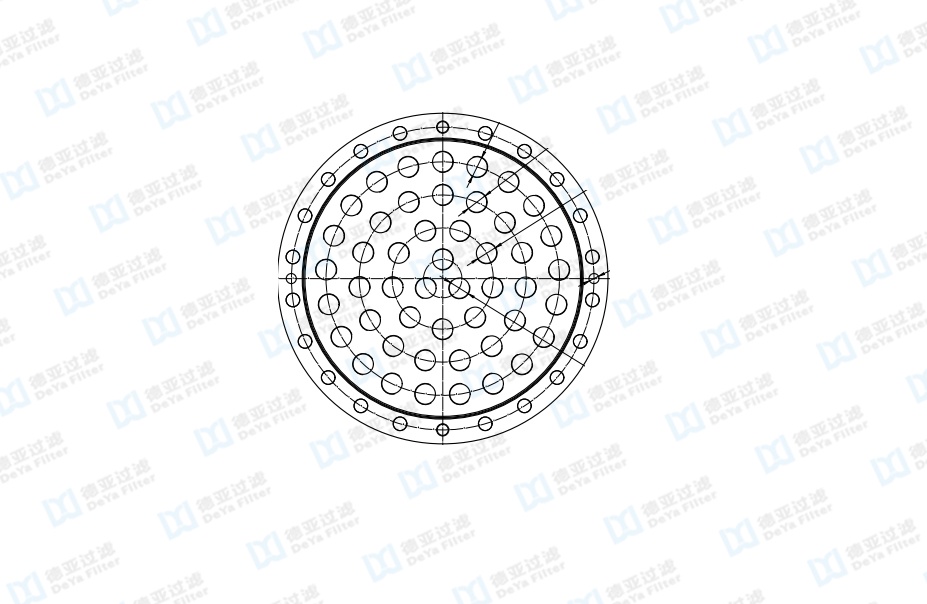

Drawing 01

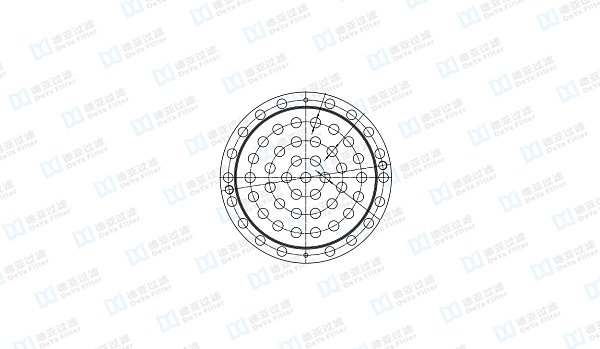

Drawing 02

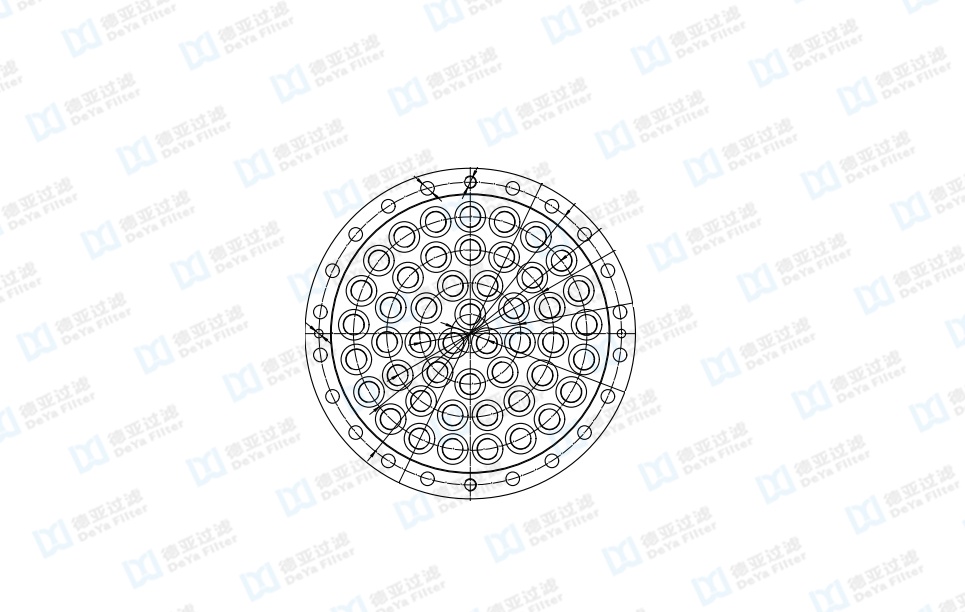

Drawing 03
Drawing 04

Features

The filter element bears pressure evenly.
High filtration accuracy, stable performance, and low cost.
Large filtration area, high flow rate, and adjustable filtration area.
Achieves maximum cleanliness through filtration and post-washing.
Environmentally friendly, minimizing waste generation and chemical treatment requirements.

Technical Specifications

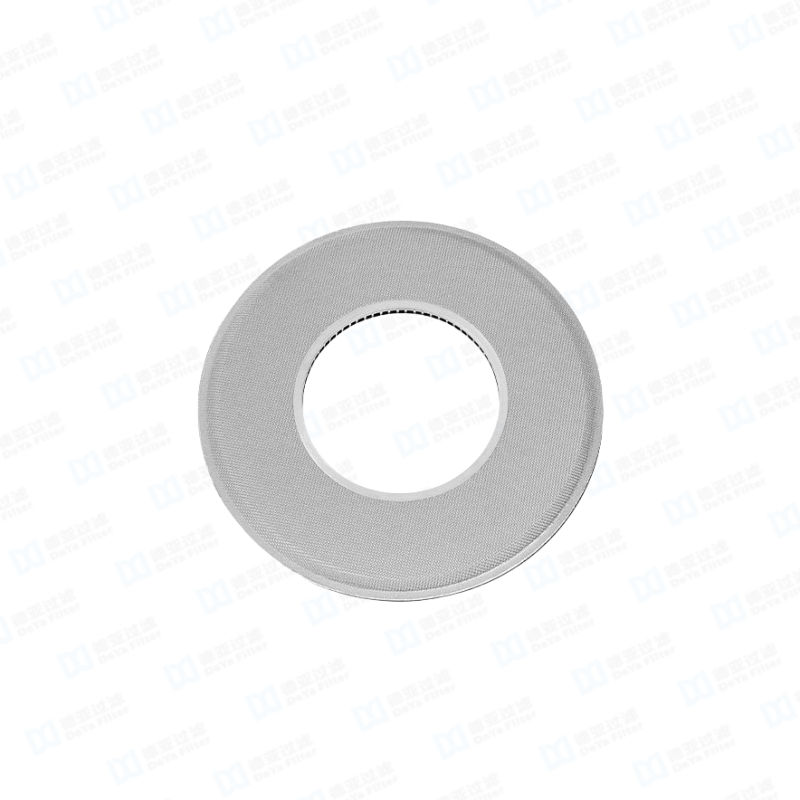

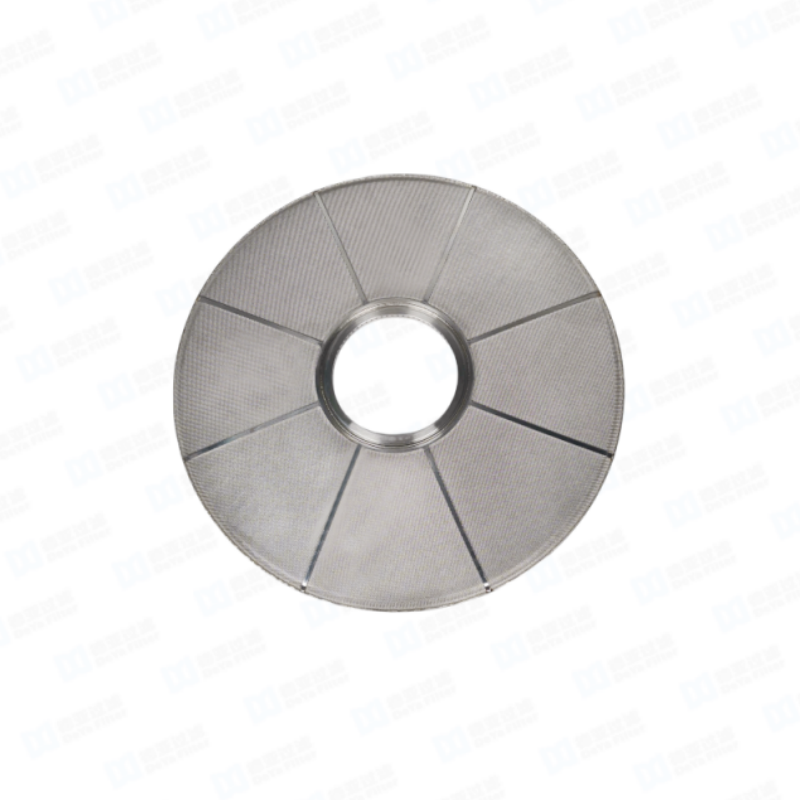

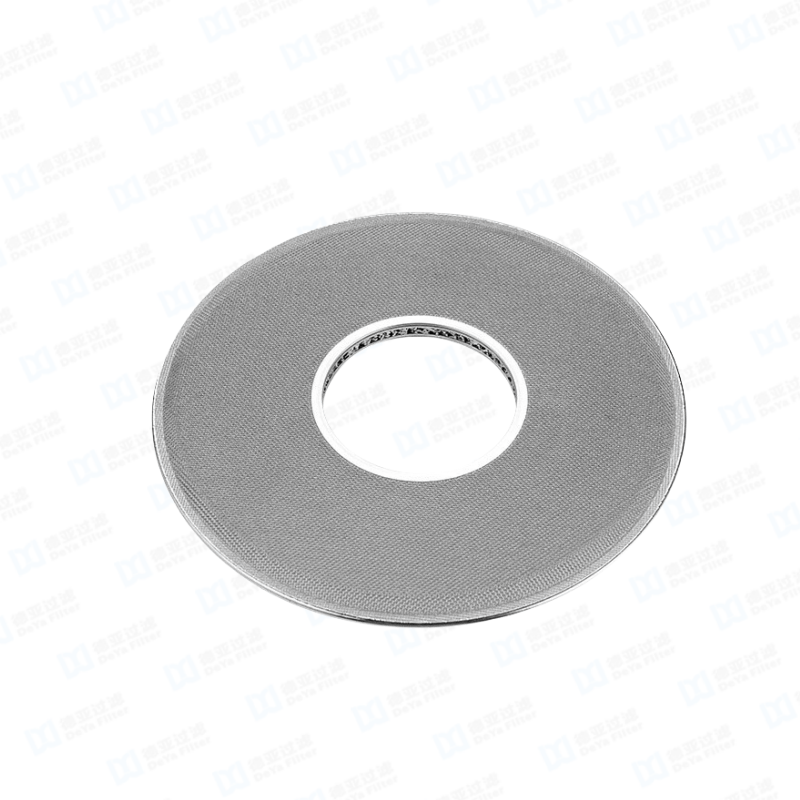

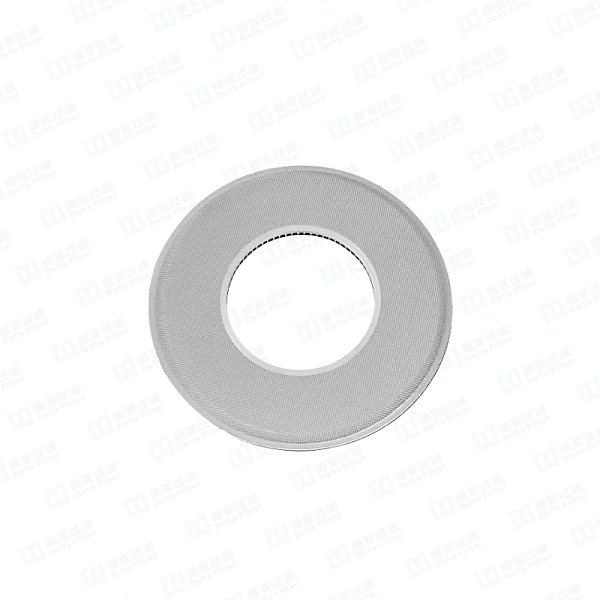

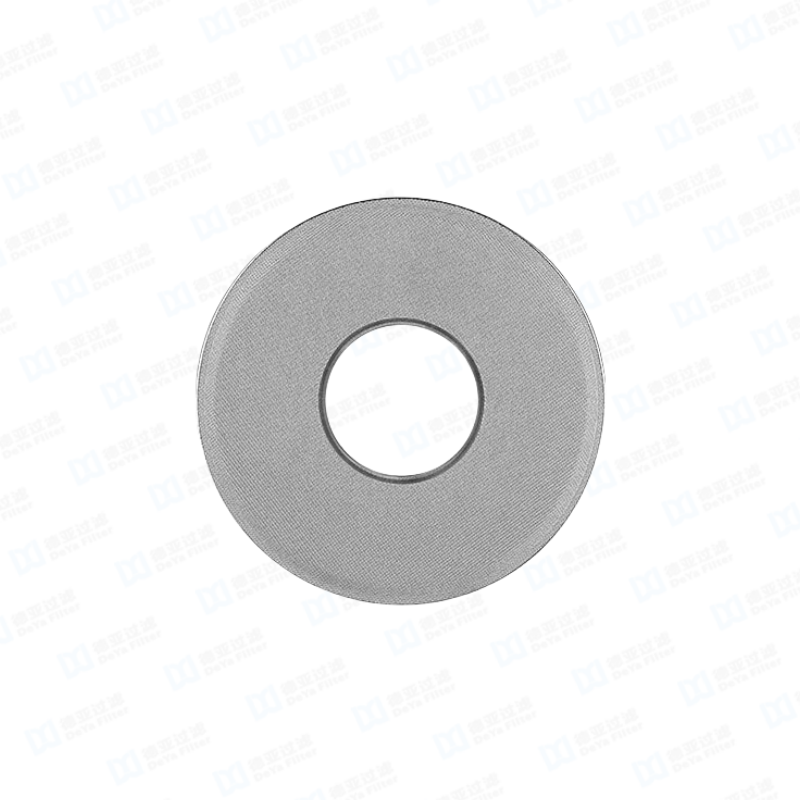

Stainless Steel Melt Filter Disc Technical Parameter Table
Parameter Item	Specification & Details
Basic Information
Product Name	Stainless Steel Melt Filter Disc
Product Type	Sintered / Woven Mesh Filter Disc
Standard Material	304 / 316L Stainless Steel (UNS S30403 / UNS S31603)
Standard Shape	Round, Toroidal, Oval, Fan-shaped (Customizable)
Core Technical Parameters
Filtration Rating	0.5μm ~ 300μm (Standard: 1, 3, 5, 10, 20, 40, 60, 100μm)
Filtration Efficiency	≥98% (Absolute Filtration)
Porosity	30% ~ 80% (Adjustable based on requirements)
Maximum Operating Temperature	400℃ (Standard) / 900℃ (Special Sintered Type)
Maximum Differential Pressure	10MPa (100bar) / 40bar (580psi) depending on dimensions
Specification Parameters
Standard Diameter Range	2mm ~ 500mm (Custom sizes available)
Standard Thickness Range	1mm ~ 100mm (Custom thicknesses available)
Customization Options	Size, Shape, Filtration Precision, Multi-layer Composite, Sealing Ring
Performance & Features
Cleaning Method	Ultrasonic Cleaning, Back Washing, Chemical Detergent Cleaning
Reusability	Reusable after cleaning, Long service life
Core Advantages	High porosity, High flow rate, High dirt holding capacity, High temperature resistance, High chemical corrosion resistance, High mechanical strength
Application Fields
Applicable Industries	Polymer Extrusion, Plastic, Film, Fiber, Resin, Chemical, Pharmaceutical
Applicable Media	High Viscosity Polymer Melt, Plastic Melt, Hot Oil, Corrosive Liquid, High Temperature Gas
Certifications & Standards
Compliance Standards	ISO 9001, ISO 19443, RoHS, REACH
Surface Finish	Standard Matte / Electropolished (Ra ≤ 0.8μm)
