Petroleum Oil Filtration

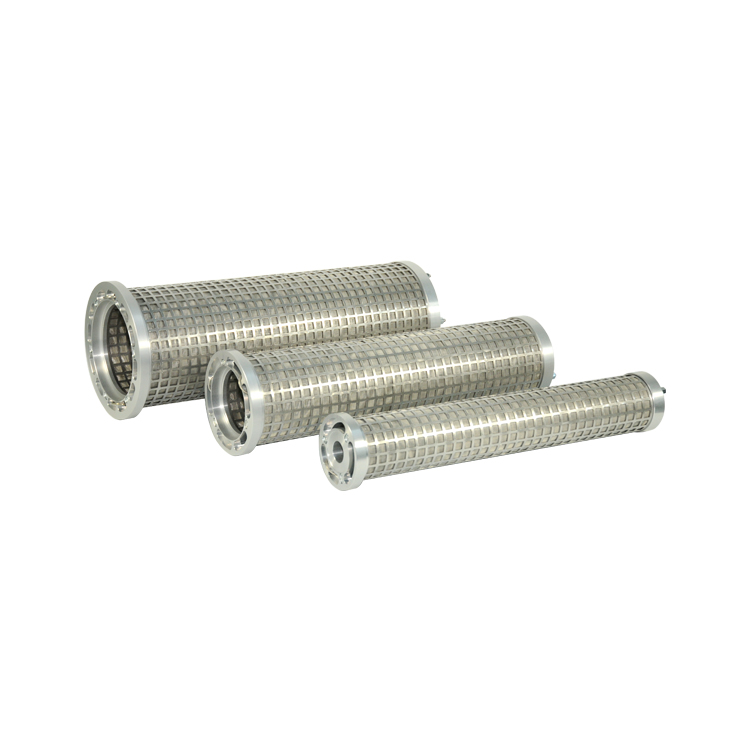

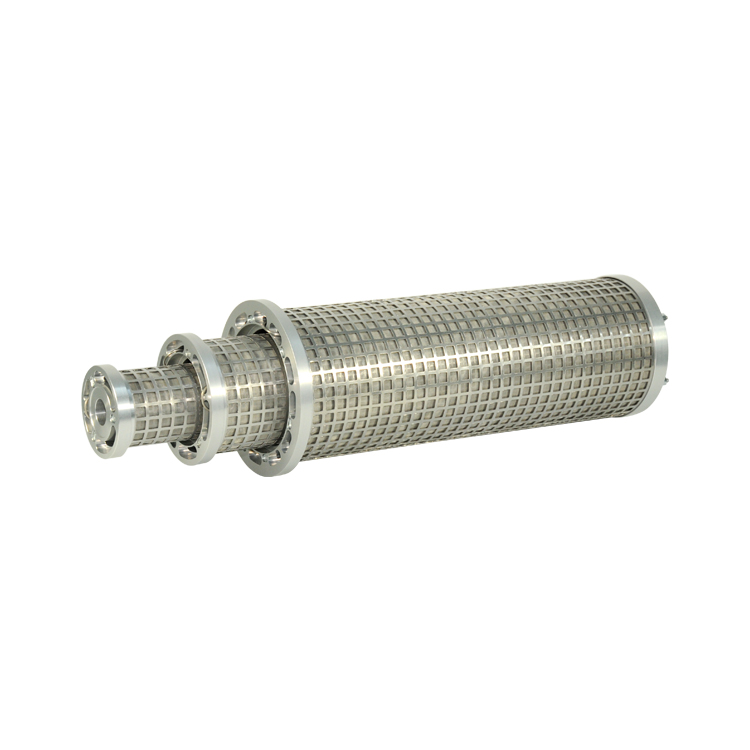

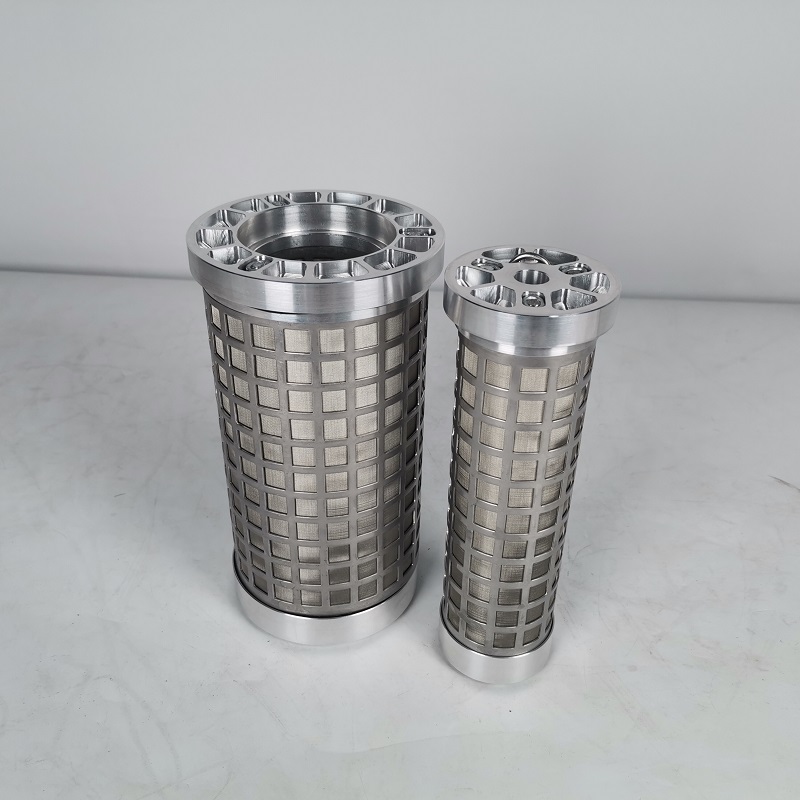

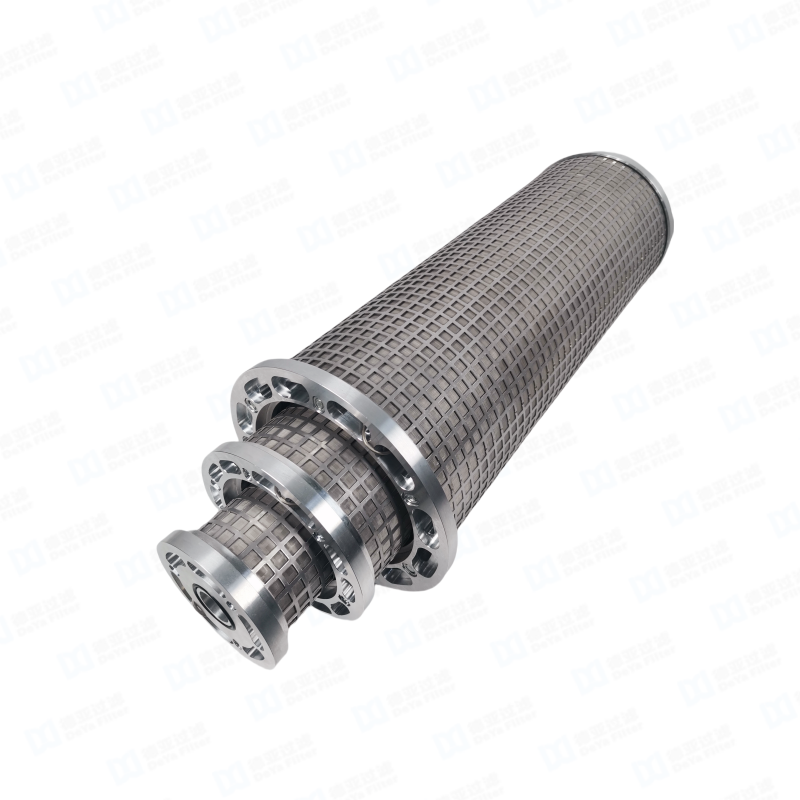

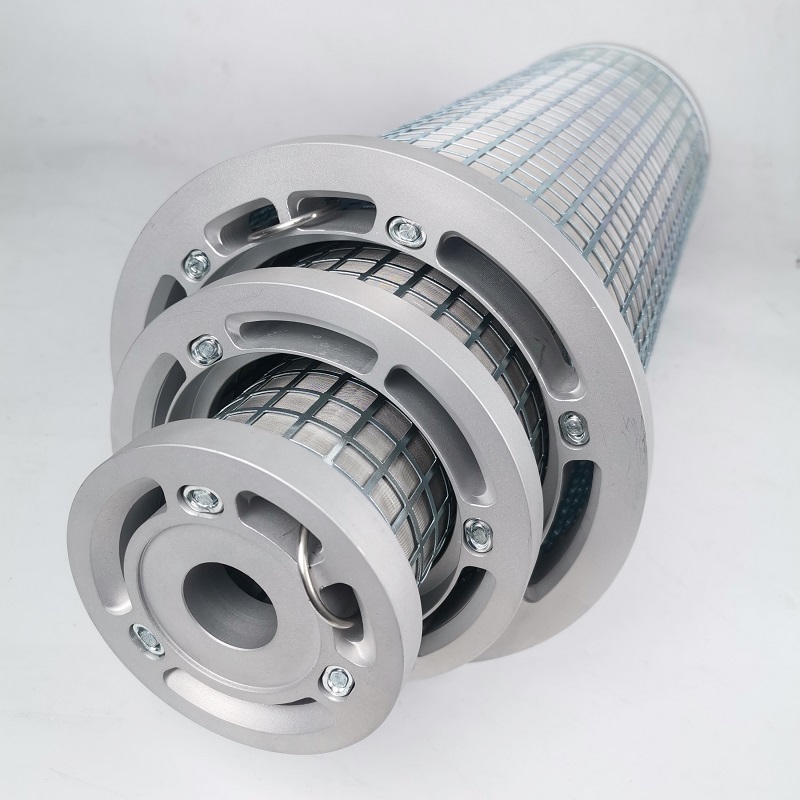

Multi-mantle parallel filter elements are high-flow oil filter cartridges constructed with multiple concentric filter sleeves arranged in parallel flow paths.
Each independent filter mantle works simultaneously to enlarge total filtration area greatly, designed specially for industrial oil filtration systems.

Introduction about

Multi-mantle parallel filter elements are high-flow oil filter cartridges constructed with multiple concentric filter sleeves arranged in parallel flow paths.

Each independent filter mantle works simultaneously to enlarge total filtration area greatly, designed specially for industrial oil filtration systems.

  • 11
  • 22

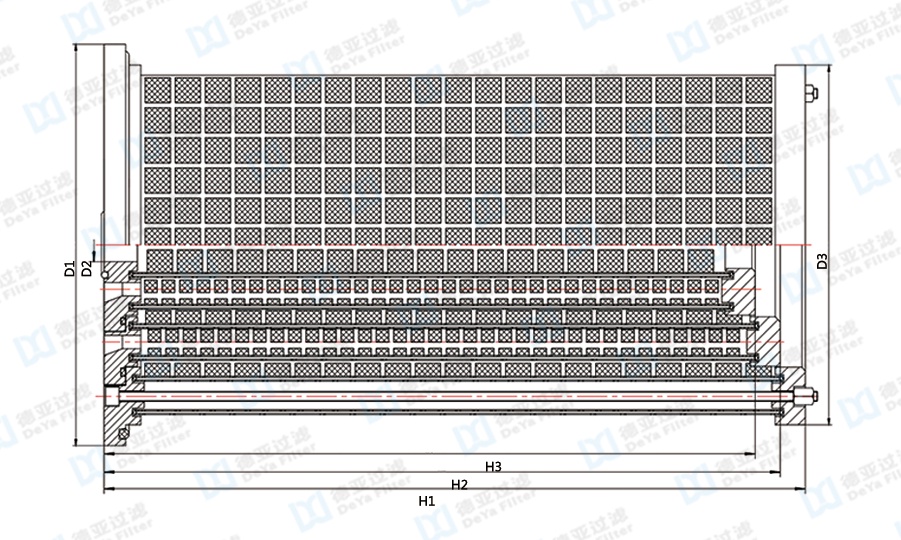

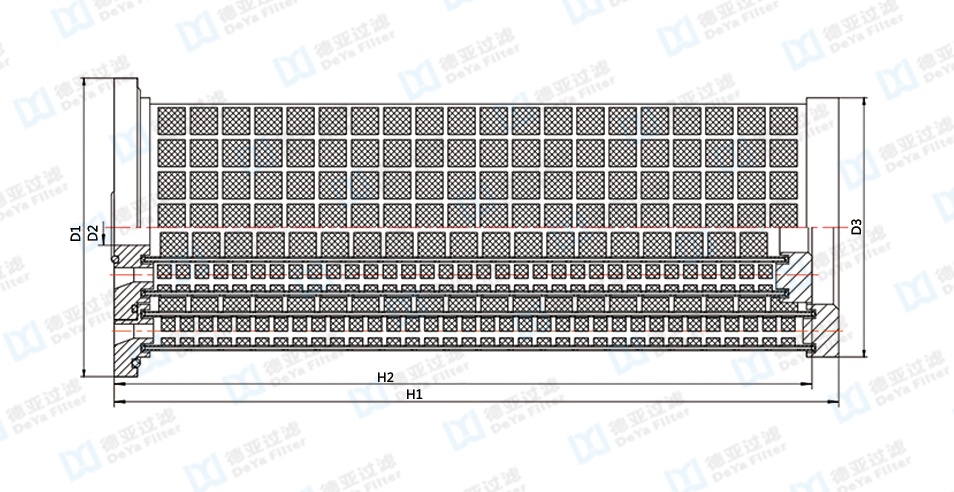

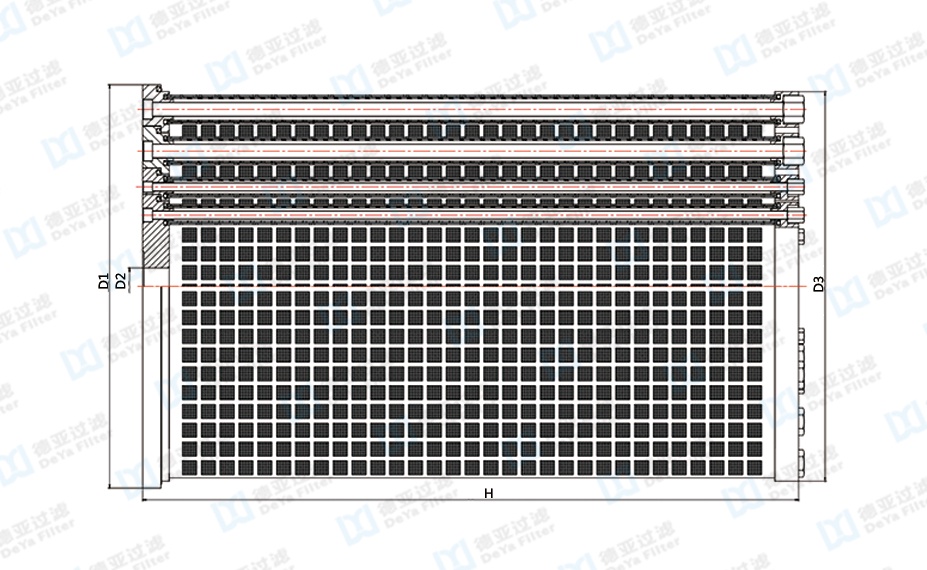

Custom Drawing

  • Drawing 01
    Drawing 01
  • Drawing 02
    Drawing 02

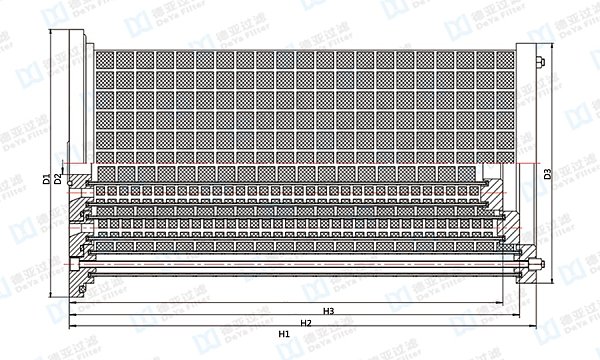

  • Drawing 03
    Drawing 03
  • Drawing 04
    Drawing 04

Features

  • High filtration efficiency: The stainless steel three-series parallel filters can handle multiple streams simultaneously, thereby enhancing the overall filtration efficiency and ensuring that the system can effectively remove impurities even under high load conditions.

  • High temperature and corrosion resistance: Due to the use of stainless steel material, this filter has excellent high-temperature and corrosion resistance properties, suitable for harsh working environments.

  • Flexible maintenance method: This parallel design enables other units to continue operating when one unit needs maintenance or replacement, thereby reducing the downtime of the system.

  • High flow processing capacity: This three-series parallel design can meet higher flow requirements and is suitable for large industrial applications.


Technical Specifications

Main Material

304 / 316L Stainless steel woven net / sintered net + stainless steel supporting frame

Filtration Accuracy

5μm ~ 500μm (Customized)

Max Working Pressure

1.6MPa (16bar)

Working Temperature Range

-20℃ ~ 450℃

Structure

2-layer / 3-layer Concentric Parallel Sleeve

Connection Type

Thread, Flange, Quick Clamp,customized

Core Features

High flow rate, low pressure loss, large pollutant capacity, washable and reusable

Applicable Medium

Lubricating oil, hydraulic oil, fuel oil, industrial fluids, gases

Surface Treatment

Mirror polishing, pickling and passivation

Standard

GB/T 14041.1-2007、ISO 16889

Dirt Holding Capacity

≥Three times the ordinary cylindrical filter element

Initial Pressure Drop

≤0.05MPa (At the rated flow rate)

Washable Times

≥10times (Ultrasonic cleaning)

Filtration Area

It is 3 to 4 times larger than the ordinary filter element of the same volume.

Typical application

  • Multi-layer concentric parallel filter element, used for purifying high-flow oil. Widely applied in lubricating oil, hydraulic oil, gear oil, and used for filtration in compressors, turbines, industrial machinery, power equipment and heavy industry fluid systems.
