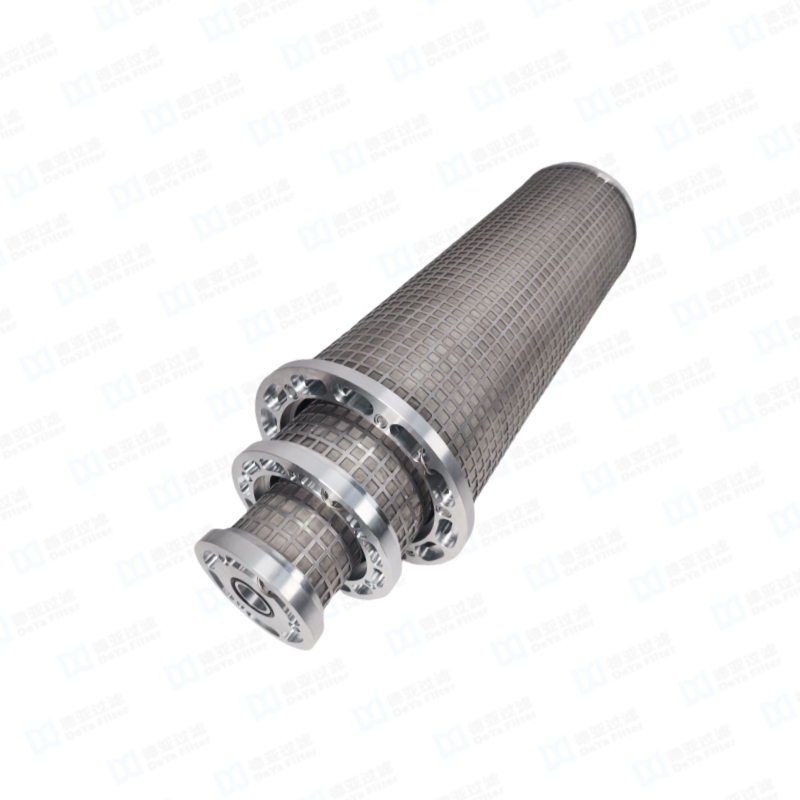

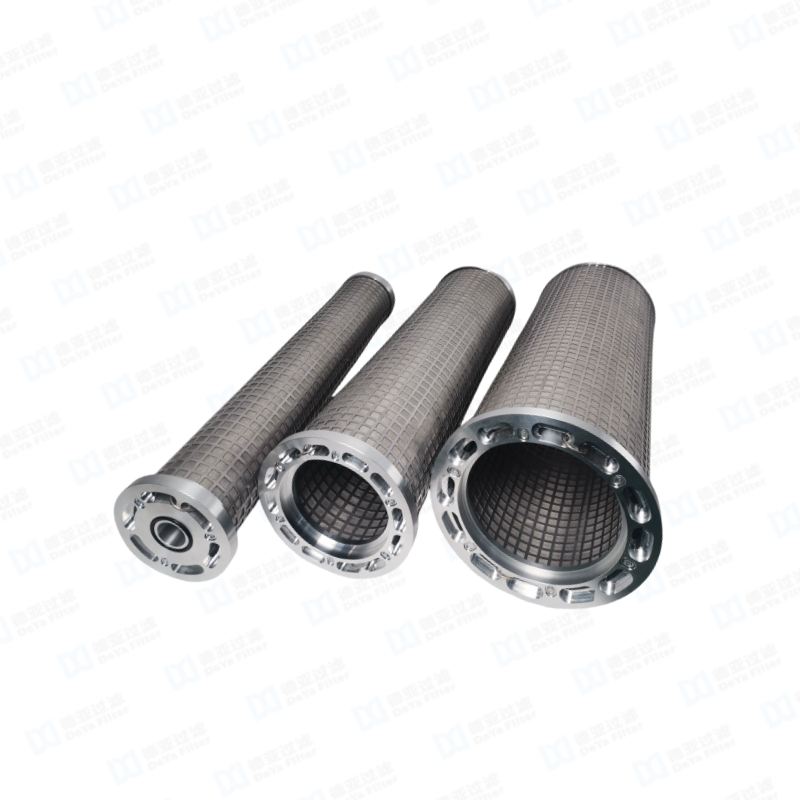

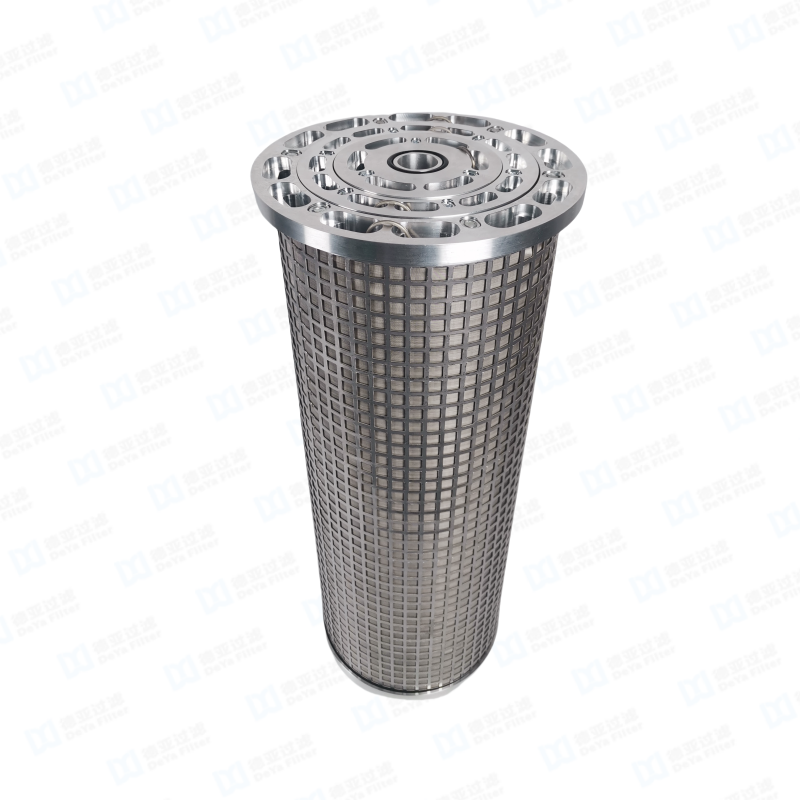

Parallel Oil Filter Element

Parallel Oil Filter Element is a high-performance, reusable filtration component specifically designed for parallel oil filter systems. Made of premium 304/316L stainless steel (titanium, Hastelloy optional for special corrosive conditions) via vacuum high-temperature sintering, it perfectly adapts to the parallel working mode, efficiently filtering impurities, metal particles and oil sludge in industrial oil, ensuring the cleanliness of oil, protecting parallel filter systems and downstream equipment, and maintaining stable operation of the entire oil circuit.
  • Parallel Oil Filter Element
  • Parallel Oil Filter Element
  • Parallel Oil Filter Element

Product Overview:

Parallel Oil Filter Element is a high-performance, reusable filtration component specifically designed for parallel oil filter systems. Made of premium 304/316L stainless steel (titanium, Hastelloy optional for special corrosive conditions) via vacuum high-temperature sintering, it perfectly adapts to the parallel working mode, efficiently filtering impurities, metal particles and oil sludge in industrial oil, ensuring the cleanliness of oil, protecting parallel filter systems and downstream equipment, and maintaining stable operation of the entire oil circuit.


Core Technical Parameters:

Base Material

304/316L Stainless Steel (standard); Titanium/Hastelloy (corrosion-resistant option)

Perforation Specification

Hole diameter: 0.5mm - 10mm; Perforation rate: 20% - 50% (customizable)

Filtration Precision

0.1μm - 200μm (adjustable by perforation size and optional mesh lining)

Max Working Pressure

Up to 30MPa (300bar), suitable for industrial filtration工况

Operating Temperature

-250℃ ~ 600℃ (standard); Up to 900℃ (high-temperature grade)

Basket Size

Diameter: 40mm - 400mm; Height: 80mm - 1000mm (customizable per customer requirements)


Key Advantages:

Parallel system-specific design: Precise size matching, leak-proof, easy to assemble with parallel oil filter systems, adapting to parallel working pressure and flow requirements.

High strength: Integral sintered structure, pressure-resistant, non-deformable, durable for long-term continuous operation.

Efficient oil filtration: Uniform pores, effectively intercepting metal particles, impurities and oil sludge, ensuring oil cleanliness and protecting equipment.

Cost-effective: Reusable, easy to clean (backwashing, ultrasonic cleaning), long service life, reducing maintenance costs and replacement frequency.

Corrosion & high-temperature resistant: Adaptable to various industrial oils and harsh working environments, stable performance.


Application Fields:

Widely used as a matching filter element for parallel oil filters in petrochemical, power generation, metallurgical, mechanical and hydraulic systems, suitable for oil purification and impurity filtration in hydraulic stations, power units, industrial machinery and other equipment.
