Water Treatment Filtration

Addressing Specialized Water Treatment Filtration Environments.
In seawater desalination filtration, metal filter cartridges are typically used for preliminary filtration at the inlet of the seawater purification system. Because seawater may contain various minerals and microorganisms, pre-filtration is necessary before it is conveyed to other process equipment.

Introduction about

Addressing Specialized Water Treatment Filtration Environments.

In seawater desalination filtration, metal filter cartridges are typically used for preliminary filtration at the inlet of the seawater purification system. Because seawater may contain various minerals and microorganisms, pre-filtration is necessary before it is conveyed to other process equipment.

Unfiltered seawater can cause wear and damage to subsequent precision equipment. Large particles and organic matter in seawater can clog treatment equipment, reducing treatment efficiency and increasing treatment costs.

Wastewater filtration is commonly used to treat large volumes of wastewater from domestic, industrial, or commercial activities. Wastewater typically contains various solids or impurities, such as clay, sand, colloids, microorganisms, and organic matter. Metal filter cartridges are first used for pre-filtration to protect subsequent treatment equipment, improve filtration efficiency, enhance the quantity and quality of wastewater treatment, while reducing treatment costs and ensuring good treatment results.

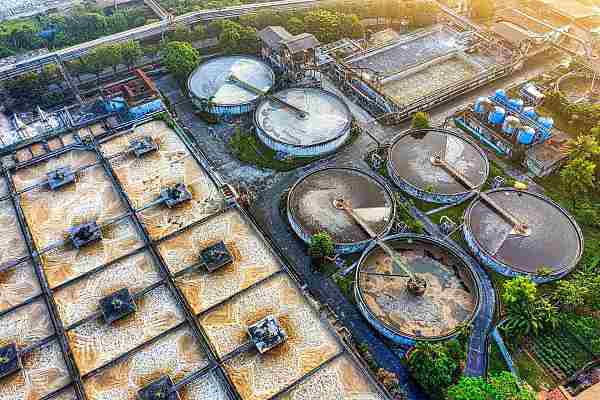

  • zhu1
  • zhu2

Custom Drawing

  • Dawing 01
    Dawing 01
  • Drawing 02
    Drawing 02
  • Dawing 03
    Dawing 03
  • Drawing 04
    Drawing 04

Features

  • High corrosion resistance, suitable for tap water, wastewater, chemical water and brackish water filtration.

  • Uniform pore structure, stable filtration efficiency and good backwash performance.

  • Reusable after cleaning, long service life, low operating cost.

  • High mechanical strength, not easy to deform under high pressure.

  • Food & industrial grade safety, no secondary pollution.


Technical Specifications

Item

Specification

Material

304 / 316L Stainless Steel

Filter Rating

0.5μm ~ 200μm

Working Temperature

≤ 200°C

Maximum Working Pressure

1.6 MPa

Differential Pressure

Max 0.8 MPa

End Cap Material

Stainless Steel / PP

Connection Type

Thread / Quick Connect / Flange / DOE / SOE

Outer Diameter

25mm / 30mm / 40mm / 50mm / 60mm

Length

5" / 10" / 20" / 30" / 40" / Customized


Typical application

  • Pre-membrane pretreatment (security filtration for RO, UF, and NF systems).
  • Ultrapure water terminal polishing.
  • Circulating cooling water filtration.
  • Advanced wastewater reuse treatment.
  • Municipal tap water purification.
  • Industrial circulating water treatment.

  • Wastewater filtration & reuse.

  • Water treatment for food, beverage and pharmaceutical industry.

  • Petrochemical, electroplating and chemical water filtration.

  • 1shiy
  • 2shiy
  • 3shiy
  • 4shiy
